Product specifications
WuT 11021

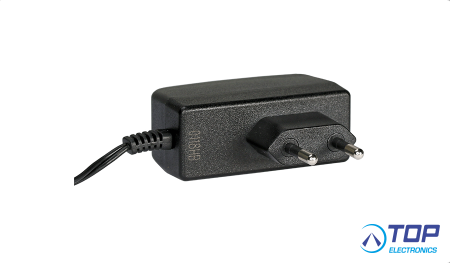

Plug-in Power Supply 24V / 12W
Level VI conformal plug-in power supply with Euro plug
24V power supply with 84% efficiency and low no-load losses < 0.075W (per DoE LEvel VIO)
General Data
- 24V AC adapter
- Integrated Euro plug
- High efficiency: min. 84%
- Low no-load losses < 0.075W (per DoE Level VI)
- Limited Power Source (LPS)
- Compact form factor: 69 x 29 x 78 mm
- Standardized for residential and commercial applications:
- Noise emission and noise immunity for office and small-business environment
Features
- Input voltage: 100..240VAC
- Frequency:50...60Hz
- Input current: max. 0.5A
- Output voltage: 24V DC
- Tolerance: ±5%
- Ripple: max. 200mV
- Output power: max. 12W
- Rated current: 0.5A, short-circuit protected
- Minimum load: none
- Efficiency: min. 84%
- No-load losses: <0.075W, per DoE Level VI
- LPS: Yes
- Dielectric strength: In-Out: 3KV AC
- Leakage current: < 0.25mA
- Mains connection: Euro plug
- Secondary connection: 2-pole special connector for screw terminal
- Cable type: Twin lead
- Cable length: 1.8 meters
- Operating temperature: 0..50°C
- Lagertemperatur: -20..60°C
- Relative humidity: 5..90% rH (non-condensing)
- MTBF: >200,000 hours (per MIL-HDBK-217F at 25° C)
- Dimensions: 69 x 29 x 78 mm (L x W x H)
- Weight: 100 G
- Approvals: CE
- Safety standard: EN 60950-1
- EMC - Emission: EN 55032 B, EN 61000-3-2, EN 61000-3-3
- EMV - Noise immunity: EN 55024,EN 61000-4-2, EN 61000-4-3,EN 61000-4-4, EN 61000-4-5,EN 61000-4-6, EN 61000-4-8,EN 61000-4-11
- Wiesemann & Theis product -
