Product specifications

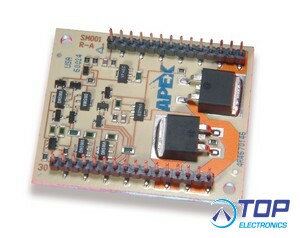

MP39CL - Power Operational Amplifier, 100V, 10A
The MP39 is a cost-effective high voltage MOSFET power operational amplifier constructed with surface mount components on a thermally conductive but electrically isolated
substrate. While the cost is low the MP39 offers many of the same features and performance specifications found in much more expensive hybrid power amplifiers.
The metal substrate allows the MP39 to dissipate power up to 125 watts and its power supply voltages can range up to +/- 50 Volts (100V total). Optional boost voltage inputs allow the small signal portion of the amplifier to operate at higher supply voltages than the high current output stage. The amplifier is then biased to achieve close linear swings
to the supply rails at high current for extra efficient operation. External compensation tailors performance to the user needs. A four-wire sense technique allows current limiting without
the need to consider internal or external mili-ohm parasitic resistance in the output line. An Iq pin is available which can be used to shut off the quiescent current in the output stage.
The output stage then operates class C and lowers quiescent power dissipation. This is useful in applications where output crossover distortion is not important.
TYPICAL APPLICATION REF:
The high power bandwidth and high voltage output of the MP39 allows driving ultra-sonic transducers via a resonant circuit including the transducer and a matching transformer.
The load circuit appears resistive to the MP39.
FEATURES
• HIGH INTERNAL DISSIPATION — 125 Watts
• HIGH VOLTAGE, HIGH CURRENT — 100V, 10A
• HIGH SLEW RATE — 10V/μs
• 4 WIRE CURRENT LIMIT SENSING
• OPTIONAL BOOST VOLTAGE INPUTS
APPLICATIONS
• LINEAR AND ROTARY MOTOR DRIVES
• YOKE/MAGNETIC FIELD EXCITATION
• PROGRAMMABLE POWER SUPPLIES TO ±45V
• INDUSTRIAL AUDIO
• PACKAGE OPTION - DIP10 - DUAL-IN-LINE
- APEX Microtechnology product -
