MP106 - Power Operational Amplifier, 40V, High Speed 50 V/µs

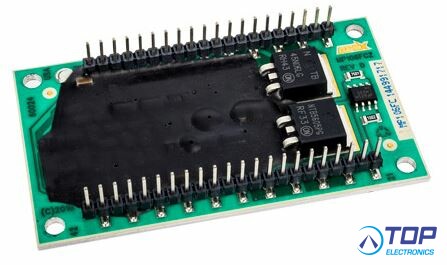

The MP106 is a high output power amplifier optimized for driving negative voltages. Rated with a 0 to 540nF drive capability, the MP106 is tailored for dynamically changing loads, such as capacitive loads used in piezo devices for inkjet printing applications, such as Dimatix "Samba" or similar heads. This amplifier is an open frame product design featuring a small footprint measuring just 73.4mm x 41.4mm and capable of up to 130W of internal power dissipation.
FEATURES:
Fixed gain -15V/V or -20V/V
Supply voltage -60V to -15V
Short term output current >30A (within SOA)
High slew rate 50V/µs
Drive capability 0-540nF
Power bandwidth 280kHz
Maximum internal power dissipation 130W
Small footprint open frame packaging
- APEX Microtechnology product -
