Product specifications
WuT 11025

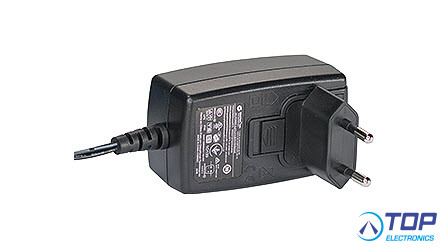

Power Supply, EU/US/UK plug, 24V, 0,75A
Versatile plug-in power supply
24V power supply with 85% efficiency and with low standby losses < 0.1W (per DoE Level VI)
General Data
- 24V AC adapter
- High efficiency: min. 85%
- Low standyby losses < 0.1W (per DoE Level VI)
- Limited Power Source (LPS)
- Flexible in application:
- Primary-side interchangeable adapter system
- Generous 100...240V input range
- CE Marking as well as UL / cUL and CCC approval
- Compact form factor: 74 x 43.5 x 34 mm
- Standardized for residential and commercial applications:
- Noise emission and noise immunity for office and small-business environment
Features
- Input voltage: 100..240VAC
- Frequency: 50...60Hz
- Input current: max. 0.6A
- Output voltage: 24V DC
- Tolerance: ±5%
- Ripple: max. 150mV
- Output power: max. 18W
- Rated current: 0.75A, short-circuit protected
- Minimum load: none
- Efficiency: min. 85%
- No-load losses: <0.1W per DoE Level VI
- LPS: Yes
- Dielectric strength: In-Out: 3KV AC
- Leakage current: < 0.25mA
- Mains connection: Interchangeable adapter system
- 11025: Euro adapter
- 11026: Euro, US, UK adapters
- 11027: US adapter
- Secondary connection: 2-pole special connector for screw terminal
- Cable type: Twin leads with ferrite core
- Cable length: 1.8 meters
- Operating temperature: 0..40°C
- Storage temperature: -10..70°C
- Relative humidity: 20...80% rH (non-condensing)
- MTBF: >200,000 hours (per MIL-HDBK-217F at 25° C)
- Dimensions: 74 x 43.5 x 34 mm (L x W x H)
- Weight: 140 g
- Approvals: CE, GS, UL, c-UL, CCC
- Safety standard: EN 60950-1
- EMC - Emission: EN 55032 B, EN 61000-3-2, EN 61000-3-3
- EMV - Noise immunity: EN 55024 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
- Wiesemann & Theis product -
