Product specifications

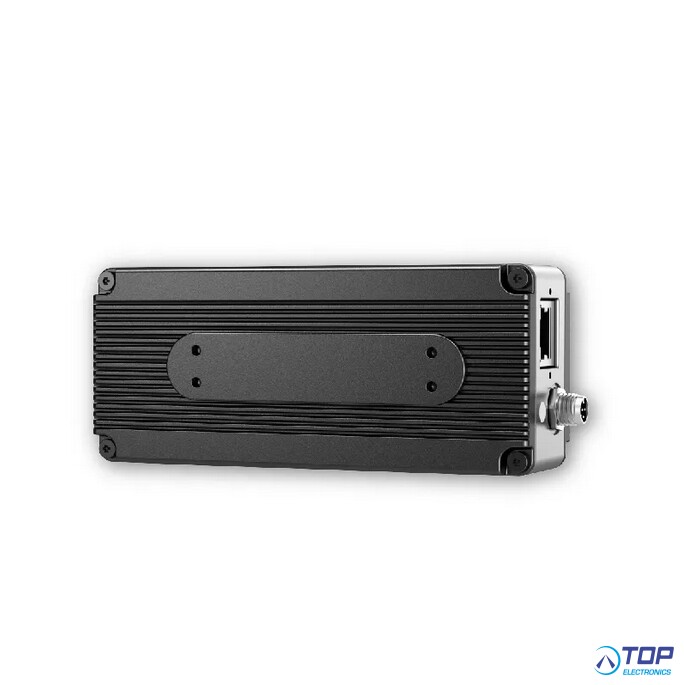

NYX650
IP42 Rating
Vzense NYX Series Pulse-iToF Cameras
The NYX series ToF and RGB cameras have a 70° horizontal and 50° vertical field of view with a 30fps frame rate, perfect for fast-moving scenes. They use 940nm infrared light, making them suitable for both indoor and outdoor use. Developed with Nuvoton’s pulsed-wave ToF chip technology, these cameras offer precise measurements and strong ambient light resistance. They feature a wide dynamic range and are IP67 rated for water and dust resistance. Technical adjustments enable multiple devices to operate without interference. Their excellent light resistance ensures smooth operation in low-light and bright-light conditions. The robust housing, including an M12 connector, is ideal for demanding industrial applications.
30fps Frame Rate - Multi-cameras Coexitence Supporting - Strong Ambient Light Robustness - IP67 Rating

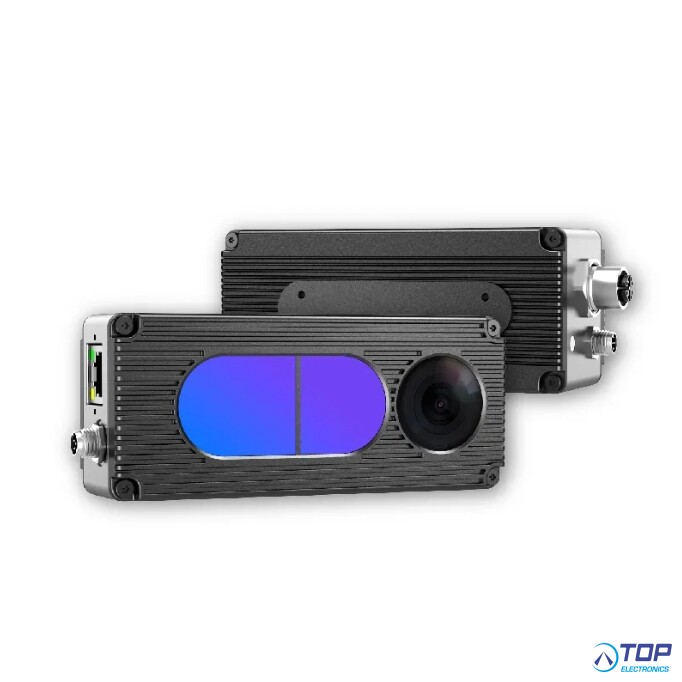

The NYX series includes two models: NYX650 and NYX660.While they are essentially the same in most respects, there are some key distinctions:
- IP Rating:The NYX650 has an IP42 rating, while the NYX660 boasts an IP67 rating due to its physical connection method of M12+M8 aviation plugs.
- Power Supply Method:Only the NYX660 supports Power over Ethernet (PoE).

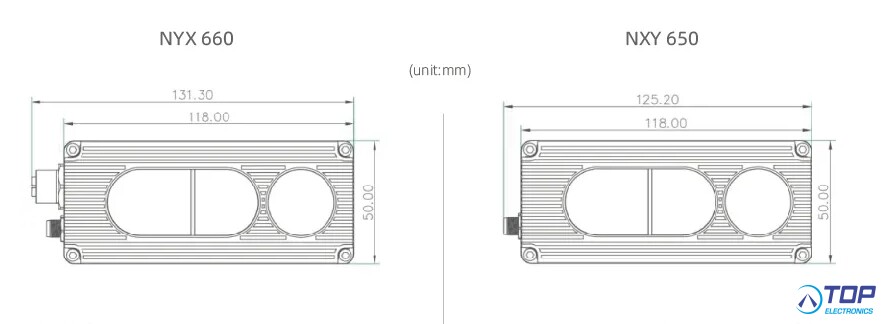

- Size: Consequently, the NYX650 is slightly smaller than the NYX660.
Specifications:
- ToF Sensor: Pulse iToF , 640*480 pixels
- ToF Frame Rate: Max. 30fps
- Emitter: 940nm VCSEL*2
- ToF Field of View: 70°(H)* 50°(V)
- RGB Module: Global Shutter, 1600*1200 pixels
- RGB Field of View: 70°(H)* 50°(V)
- Power Supply: 12V~24V DC
- Physical Connection: RJ45+M8 Aviation Plugs
- Communication: 1000M ethernet&RS485
- Output Format: 16bit(depth)+8bit(IR)+JPEG(RGB)
- Accuracy Error: 1%~2%
- Work Range: 0.3~4.5m
- Work Temperature: -20°C ~ 50°C
- Operation System & Platform: Windows/Linux/Arm Linux/ROS1/ROS2
- SDK Support: C/C++/Python
- IP Rating: IP42
