Product specifications
WuT 50521

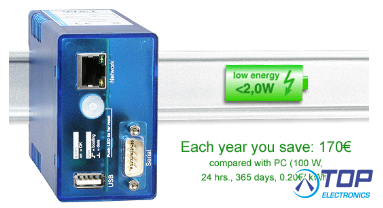

pure.box 3 Serial / USB / WLAN
Ready-to-use industrial PC on DIN rail
Use the pure.box 3 with serial interface and 2 USB ports as the framework for your application. The pre-configured Linux system comes ready with everything you need for network- and web-based applications. The supported database systems MySQL and SQLite enable convenient saving of your application data. Use the serial port to connect terminal devices which you control and monitor through your application. Use the USB ports to connect HID devices, USB serial converter and WLAN adapters. Do you have another type of device you need to connect to the pure.box? Just let us know!
On request we will also develop the application software to your particular needs and requirements.
Interfaces:
-network
-serial combi-interface
-USB
Management and Connectivity:
-Configuration
-Startup using WuTility (three clicks and you’re done)
-DHCP
-Web-based management
-for your application
-Web server with HTTPS and PHP support
-MySQL database incl. server interface and SQLite support
-Run your own C/C++ programs and PHP scripts time- and event controlled
-Java support on request
-750 MB for your application data
Power supply:
-External
-Screw terminal
-Power-over-Ethernet (PoE)
-Phantom power using data pairs
-Power over unused wire pairs
-Buffer capacitors
-controlled shutdown when disconnecting from the power supply
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Connections and displays:
- Network: 10/100BaseT Autosensing/Auto-MDIX, RJ45
- Galvanic isolation: RJ45 network connection min. 1500 V
- Serial interface: Combi-interface for RS232/422/485, 50 ... 230,400 Baud
- USB: USB 2.0
- Power supply: Power-over-Ethernet (PoE) or DC 24V .. 48V (+/-10%)
- Supply connection: Plug-in screw terminal, 5.08mm spacing
- Current consumption: PoE Class 2 (3.84 - 6.49W) and typ. 150mA @ 24V DC with external supply
- Indicators and buttons: System status using multi-color LED, Network speed and data transfer, Manual device reset
Hard- and software
- Processor and memory: Marvell 88F6180, NAND Flash: 1 GB, DDR2: 128MB
- Operating system: BusyBox: v1.27.2, Linux, Kernel: v4.4.132
- Installed software: FTP server: ProFTPD v1.3.6, Web server: nginx v1.14.0, SMB server: Samba v3.6.25, PHP interpreter: v7.0.30, MariaDB: v10.1.28, SQLite: v3.18.0
Housing and other data:
- Housing: Plastic housing (105 x 75 x 45mm) with integrated DIN rail mount
- Weight: approx. 160g
- Storage temperature: -40 ... +70°C
- Operating temperature: 0 ... 55°C (adjacent installation), 0 ... 60°C (non-adjacent installation)
- Permissible relative humidity: 0 ... 95% relative humidity, non-condensing
- Scope of delivery: 1 x pure.box 3 Serial / USB, 1 x Quick Guide, 1 x Product CD with WuTility management tool and manual
- Wiesemann & Theis product -
