Product specifications

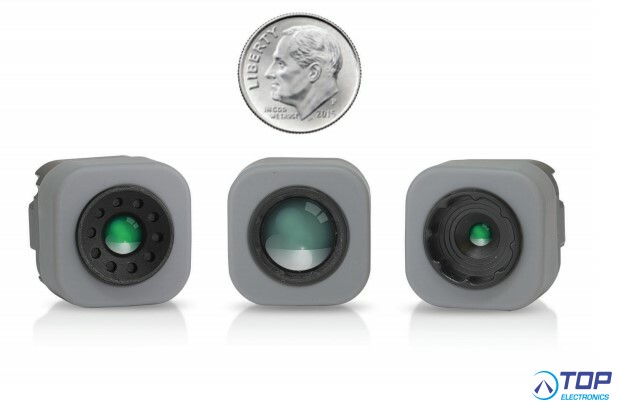

Mosaic Core 200x150 with 6.6mm Lens
C206SP
OPTICS & MECHANICAL:
- Resolution: 200 x 150
- Focal Length: 6.6mm
- F-number (focal length/aperture): f/1.26
- Spatial Resolution (IFOV, center): 1.82
- HFOV: 21°
- VFOV: 15°
- Detection Range: 543nm
- Recognition Range: 136nm
- Identification Range: 78nm
- Distance to Spot Ratio: 91:1
- Ingress Protection: IP67
- Core Dimensions Without Cushion: (L x W x H) 23 x 20 x 21mm
- Core Weight: 12gr
- Focus: Fixed
- Lens Material: Chalcogenide

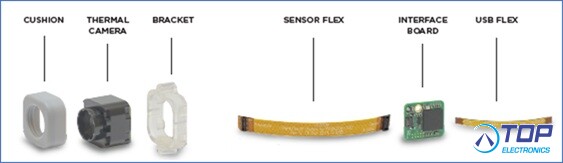

Available Starter Kit: S206SP
KEY FEATURES:
- High-Resolution Thermal Sensors
Choose a core with 30,000 or 76,800 temperature pixels with excellent
image clarity and sensitivity
- Dual-Gain Smart Pixels
Each pixel automatically adjusts gain states to maximize resolution
contrast when viewing hot and cold objects in the same scene
- 12 Micron Pixels
More resolution and temperature data packed into a physically tiny
array enables small form factor applications and lower cost
- Options For <9Hz or Fast Frame
Perfect for regions where <9Hz is required and available up to 32Hz
Fast Frame where higher frame rates are preferred and permitted
- Customizable To Meet Your Design Goals
Select the ideal thermal core for your project with options for
resolution, field of view, frame rate and more
- Add a Visible Light Camera
SDK support available for integrating a visible light camera to fuse
thermal and visible images together for additional context
