Product specifications

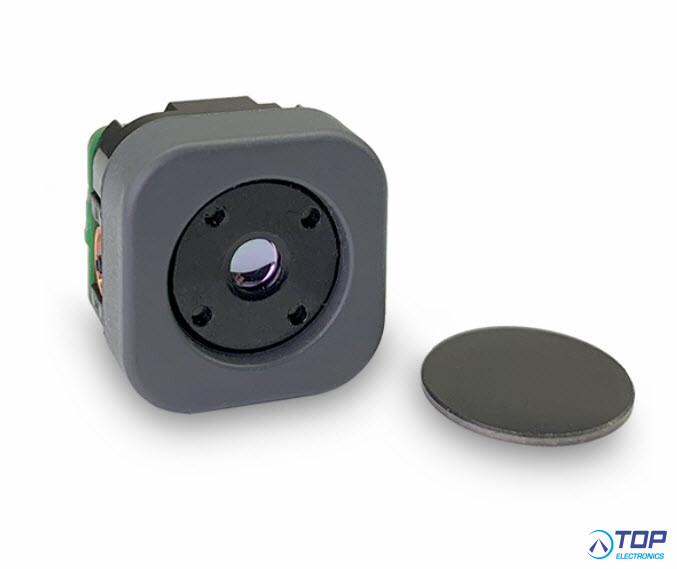

Mosaic High Temp Core: C314HPX, Fast Frame
Wider detection range. Better accuracy.
Seek Thermal has leveraged the recently developed camera core from its latest firefighting products and is now offering it to our OEM customers. This camera core allows for imaging over a broader range, utilization under more elevated operating conditions, and improved thermal accuracy. It's fully calibrated and comes with a protective Germanium window which makes it easy to design into products and housings. The camera’s compact design, mixed-gain pixel technology, and Seek’s proprietary SV1 Image Optimization filters make for a powerful and highly sensitive thermal camera.
OPTICS & MECHANICAL:
- Resolution: 320 x 240; 76,800 pixels
- -20°C to 650°C (-4°F to 1202°F) Detection
- Frame rate; Up to 27 Hz
- Focal Length: 4.0mm
- F-number (focal length/aperture): f/1.00
- Spatial Resolution (IFOV, center): 3.00
- HFOV: 56°
- VFOV: 42°
- Detection Range: 333nm
- Recognition Range: 83nm
- Identification Range: 48nm
- Distance to Spot Ratio: 56:1
- Ingress Protection: IP67
- Core Dimensions Without Cushion: (L x W x H) 20 x 20 x 15mm
- Core Weight: 12gr
- Focus: Fixed
- Lens Material: Chalcogenide
- Germanium window included
KEY FEATURES:
- High-Resolution Thermal Sensors
Choose a core with 30,000 or 76,800 temperature pixels with excellent
image clarity and sensitivity
- Dual-Gain Smart Pixels
Each pixel automatically adjusts gain states to maximize resolution
contrast when viewing hot and cold objects in the same scene
- 12 Micron Pixels
More resolution and temperature data packed into a physically tiny
array enables small form factor applications and lower cost
- Options For <9Hz or Fast Frame
Perfect for regions where <9Hz is required and available up to 32Hz
Fast Frame where higher frame rates are preferred and permitted
- Customizable To Meet Your Design Goals
Select the ideal thermal core for your project with options for
resolution, field of view, frame rate and more
- Add a Visible Light Camera
SDK support available for integrating a visible light camera to fuse
thermal and visible images together for additional context
