Product specifications

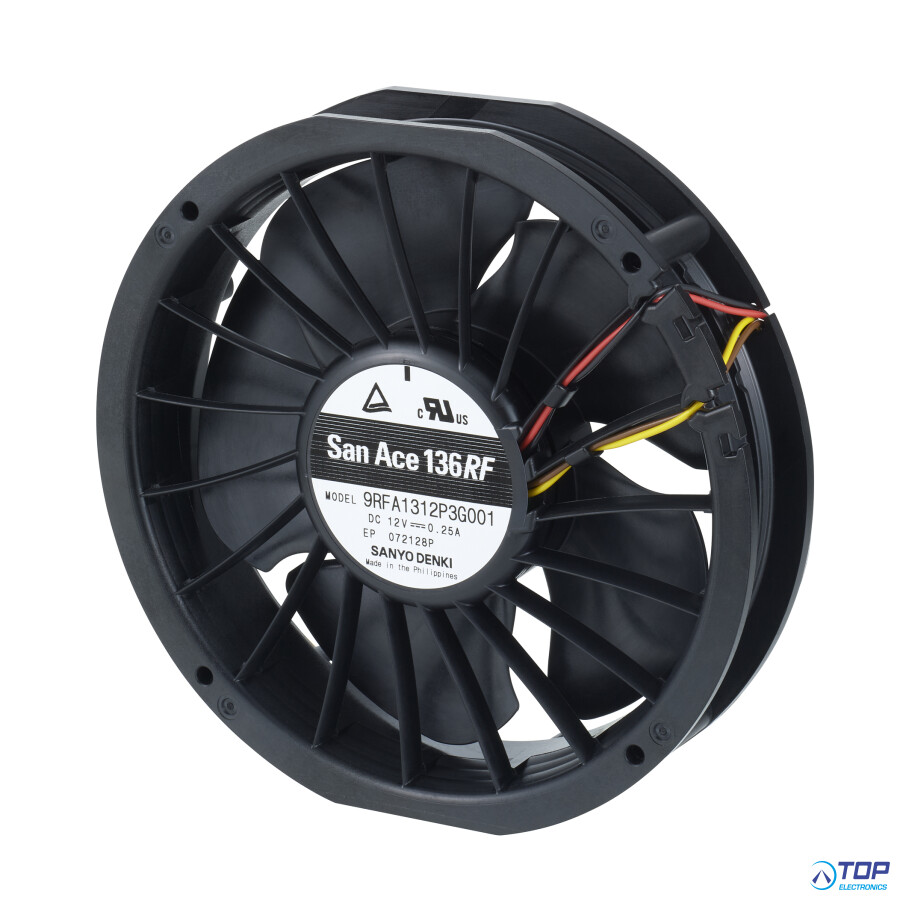

San Ace 9RFA1312P3G001
Dimensions: d136x28 mm
Rated voltage: 12 Vdc
Operating voltage: 20.4 to 27.6 Vdc
Rated current: 0.13 A
Max. Airflow: 2.10 m3/min
Max. Static Pressure : 285 Pa
These fans have pulse sensors with PWM control function
Other specifications see data sheet
- Sanyo Denki product -
