Product specifications
ERF5049

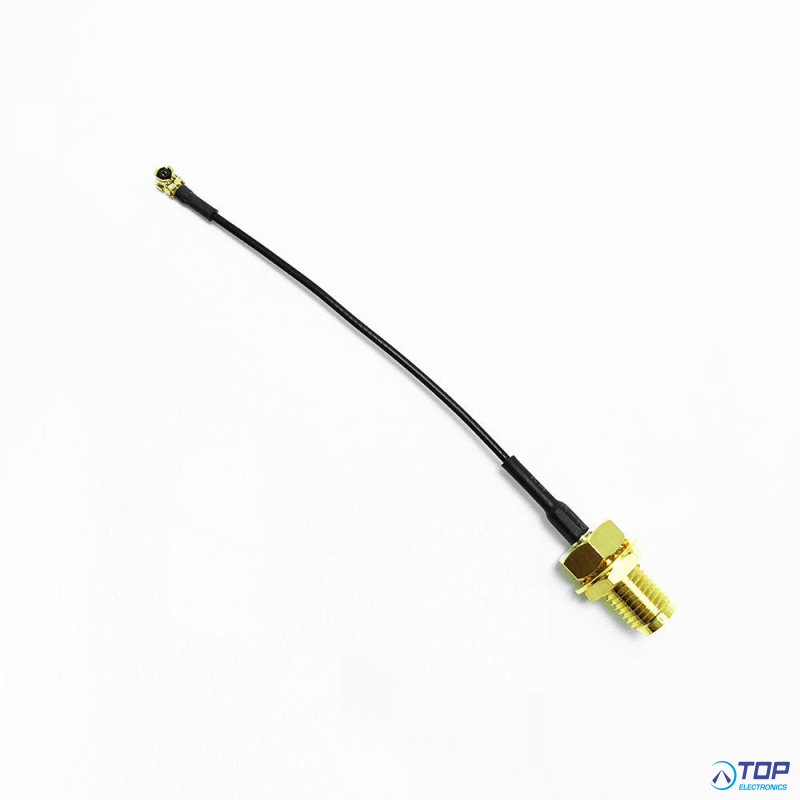

The ERF5049 is a RF-Cable suitable for RF applications.
The cable has 1 SMA female connector, and 1 U.FL connector.
It can be used for RF cable assemblies, and as an accessory for antenna’s.
Mechanical Properties
Connector Type: SMA Female & U.FL
Cable Length: 100 mm ± 10
Cable type: Coaxial 1.13
Operating Temperature Range: -55°C~+155°C
Storage Temperature Range: -55°C~+155°C
Electrical Properties
Impedance: 50 Ohm
Frequency Range: DC - 6 GHz
VSWR: 1.3 Max
Working Voltage: 500V rms @ sea level
Insulation Resistance: 5000 Ohms min.
