Product specifications

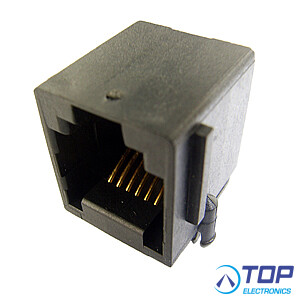

Attend 210B-66CA0-R
RJ11 Jack Plastic Type 1x1 Port
ELECTRICAL
-Voltage Rating: 125VAC RMS.
-Current Rating: 1.5AMP
-Contact Resistance:30 Milliohms MAX.
-Insulation Resistance: 1000 Megohms MIN@500 VDC
-Dielectric Strength: 1000 VDC RMS 60Hz, 1MIN
MECHANICAL
-Housing Material: Glass Filled Polyester or High Temp. UL94V-0.
-Contact Material: Phosphor Bronze t=0.46mm .
-Plating: Gold Plating over Nickel.
-Operating Life: 750 Cycles Min.
-PCB Retention Pre-Solder: 1 LB Min.
-PCB Retention Post-Solder: 10 LBS Min.
ENVIRONMENTAL
-Storage Temperature: -40℃ to +85℃
-Operation Temperature:-40℃ to +85℃
- Attend Technology product -
