Product specifications
WuT 82000

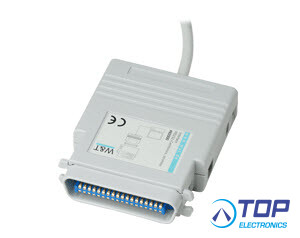

RS232 > Centronics interface, self-powered
Connect standard printers to stationary and mobile RS232 interfaces. This interface works without external power supply and allows for a number of mobile applications that were previously not feasible.
The currentless operation however has also a few disadvantages, as the functions are limited to the essential ones. If you require high baud rates, large security FIFO or autosensing of the RS232 parameters, we recommend the standard device #82008.
Technical background on security FIFO: The flow control (or handshake) in serial interfaces is not always carried out exactly by character, as, under certain circumstances, characters might still be transmitted after the set stop signal. This effect is normally limited to maximum 3 characters, although with older UNIX systems up to 1kByte of extra data has been measured. Missing security FIFO can result in the loss of characters or even garbled printouts.
Connections and displays:
- Serial port: RS232 Interface, 9-pin SUB-D female plug-ready for PC, incl. 2m connection cable on device
- Parallel port: 36-pin Centronics plug, interface, Can be plugged directly to the printer
- Baud rate: 150 .. 19,200 baud
- Data format: 7, 8 data bits, No, Even, Odd Parity
- Handshake: DTR, XON/XOFF handshake
- Buffer: 7-byte overflow buffer
- Power supply: No need for external power adapter
- Current consumption: approx. 2mA
Housing and other data:
- Housing: Plastic housing, 75 x 61 x 20mm (L x W x H)
- Enclosure rating: IP20
- Weight: approx. 200g
- Scope of delivery: RS232 > Centronics interface, self-powered, Mini Gender Changer, #11570, Mini Gender Changer, #11580
- Wiesemann & Theis product -
