WuT 80201
RS232 Line Driver / Line Extender

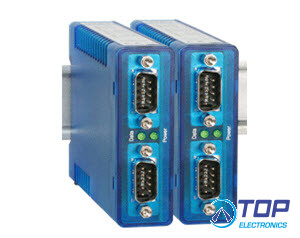

The Line Driver Set 80201 connects RS232 devices over a distance of up to 1200 meters with galvanic isolation.
When transmitting data over long distances it is virtually impossible to prevent potential differences between the connected devices. These can be caused by remote lightning strikes, but even in normal operation can arise from switching operations of high-power electrical consumers. In case of a potential shift the data line is misused for compensating the voltage difference. Potential differences of only 7V can already result in faulty transmission, whereas differences of more than 30V could destroy interface components. For this reason use of a potential isolator for connections over long distances is one measure which drastically increases the life expectancy of the connected devices.
Product properties:
Use RS232 over very long distances - safely and reliably
Transmission speed up to 115,200 baud
No re-configuration of transmission parameters required
Galvanic isolation min. 1kV DC
Integrated overvoltage protection
Supply voltage 12..24V AC/DC
Careful circuit design and generous component dimensioning ensure more than 25 years of service life
Connections and displays:
- Serial Port A: RS232 Interface, 9-pin SUB-D adapter, PC assignment
- Serial Port B: RS422 Interface, 9-pin SUB-D adapter
- Baud rate: 0..115,200 baud
- Data format: any format
- Galvanic isolation: Isolation voltage min. 1 KV DC between all terminals
- Max. distance: 1200m
- Supported signals: 2 data and 2 handshake signals
- Supply voltage: 12..24V AC/DC
- Current consumption: typ. 80mA @12V DC, 40mA @24V DC
- Displays: 1 LED Power, 1 LED Data
Housing and other data:
- Housing: Plastic compact housing for top hat rail installation, 105 x 22 x 75mm (L x W x H)
- Enclosure rating: IP20
- Weight: approx. 200g
- Ambient temperature: Storage: -40..+70°C, Operation: 0..+60°C
- Permissible relative humidity: 5..95% RH (non-condensing)
- MTBF: 328,240h @25°C per MIL-HDBK-217
- Life expectancy: > 25 years at 25°C ambient temperature
- Scope of delivery: RS232 line driver set Industry
**Please order power supplies separately as accessories**
