Product specifications
WuT 62009

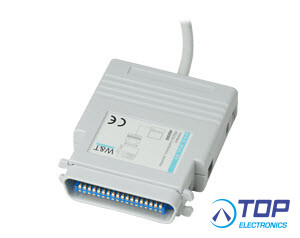

RS422 > Centronics interface, 1+1 KByte
Connect a standard parallel printer to measuring devices, terminals, telephone systems and mid-range systems. The interfaces resemble simple connecting cables, are able to automatically detect the transfer parameters and can be used for all printer models.
Connections and displays:
- Serial port: RS422 Interface, 25-pin SUB-D socket, incl. 2m connection cable on device
- Parallel port: 36-pin Centronics plug, interface, Can be plugged directly to the printer
- Baud rate: 300 .. 76,800 baud
- Data format: 7, 8 data bits, No, Even, Odd Parity
- Handshake: DTR, XON/XOFF handshake
- Buffer: 2kB (1 kB + 1 kB overflow buffer)
- Power supply: Supplied power adapter
- Current consumption: approx. 50mA
Housing and other data:
- Enclosure: Plastic housing, 75 x 61 x 20mm (L x W x H)
- Enclosure rating: IP20
- Weight: 425g incl. power adapter
- Scope of delivery: RS422 > Centronics interface, AC adapter for office use
- Wiesemann & Theis product -
