Product specifications
WuT 66203

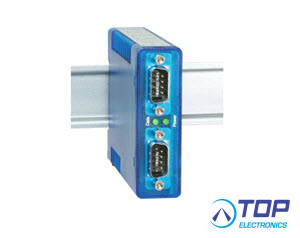

RS422/RS485 Isolator, 1kV isolation voltage with overvoltage protection
The model 66203 Isolator with integrated overvoltage protection enables galvanically isolated connection between RS422 devices and RS485 bus systems.
Overvoltage protection for RS485 ports:
The maximum permissible external differential voltage seen by the RS485 transceiver chips according to the data sheet of the semiconductor manufacturer is around +/- 12...14V. Voltages exceeding these values will inevitably result in destruction of the transceiver chips.
When using shielded cable, it is unlikely that such high differential voltages will occur, since extreme coupling onto the transmission line expresses itself as a rise in potential on all cable conductors.
When using the isolator on transmission lines outside of buildings or when the cabling conditions are unclear, use of the 66203 Isolator is recommended. This isolator model has built-in overvoltage protection, which limits the maximum occurring differential voltages to a harmless ±9V using fast protection diodes.
Product properties:
Electrical isolated connection of RS422 devices and RS485 bus systems.
Integrated overvoltage protection
Automatic control in RS485 operation
No re-configuration of transmission parameters required
High transmission speeds of up to 3 Mbaud
Supply voltage 12..24V AC/DC
Careful circuit design and generous component dimensioning
ensure more than 25 years of service life
Related products:
RS422/RS485 Isolator with integrated overvoltage protection, Model 66201
Connections and displays:
- Serial ports: RS422/RS485 interfaces, selectable, 9-pin SUB-D adapter
- Operating modes: RS422, RS485 4-wire with automatic control, RS485 2-wire with automatic control
- Switching time: Settable 10µs / 50µs for switching from data sending to receiving for RS485 automatic control (can be changed on request)
- Termination: Connectable termination network for RS485 operation
- Overvoltage protection: Differential voltage limited by Transil diodes
- Baud rate: 0..3 Mbaud
- Data format: any format
- Galvanic isolation: min. 1kV DC between all terminals
- Supported signals: RxD, TxD, CTS, DTR
- Supply voltage: 12..24V AC/DC (±10%)
- Current consumption: typ. 70mA @12V DC, 35mA @24V DC
- Supply connection: Plug-in screw terminal, 5.08mm spacing, Labeled "L+" and "M"
- Displays: 1 LED Power, 1 LED Data
Housing and other data:
- Housing: Plastic housing for top hat rail installation, 105 x 22 x 75mm (L x W x H)
- Weight: approx. 100g
- Ambient temperature: Storage: -40..+70°C, Operating in non-rowed installation: 0..+60°C, Operating in rowed installation 0..+50°C
- Permissible relative humidity: 5..95% RH (non-condensing)
- MTBF: 482,916h @25°C per MIL-HDBK-217
- Life expectancy: > 25 years at 25°C ambient temperature
- Scope of delivery: RS422/RS485 isolator, Industry
**Please order power supplies separately as accessories**
- Wiesemann & Theis product -
