Product specifications

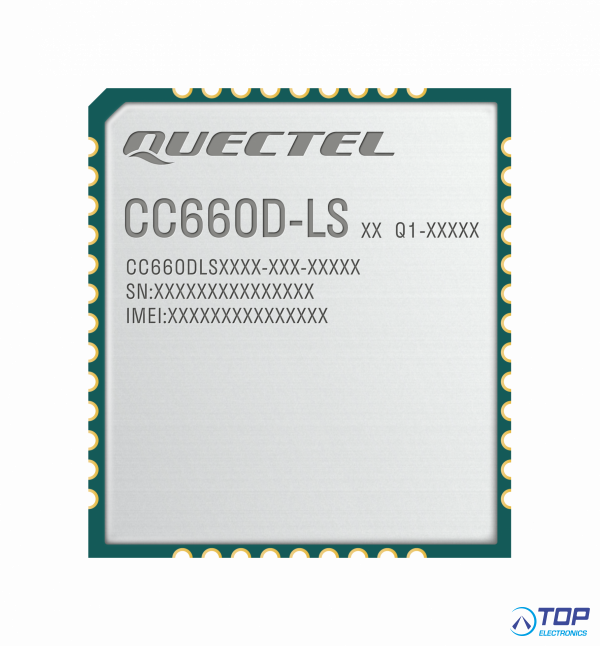

Quectel - CC660D-LS Satellite Communication Module
OVERVIEW:

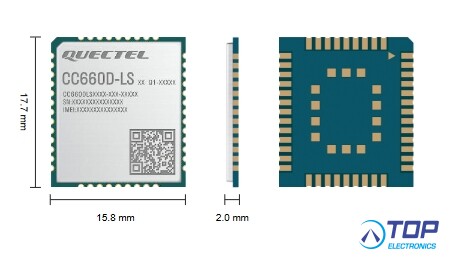

CC660D-LS is a 3GPP NTN (Non-Terrestrial Network) satellite communication module which supports 3GPP Rel-17 (loT-NTN) at L-band (B255) and S-band (B256/ 23) frequencies for satellite communications. With an ultra-compact form factor of 17.7 mm × 15.8 mm × 2.0 mm, it is a perfect choice for size-sensitive applications.
CC660D-LS adopts surface mount technology, which makes it an ideal solution for durable and rugged designs. The low profile and small size of the LCC + LGA package allow CC660D-LS to be easily embedded into space-constrained applications and provide reliable connectivity with the applications. This form factor is ideally suitable for mass production which has strict requirements for cost and efficiency.
The module can be easily integrated into any type of portable devices due to its compact size and low power consumption. CC660D-LS is suitable for applications such as messaging, tracking, and emergency services due to its highly integrated functionalities. It might also be used for the large-scale loT applications such as power-grid, pipe and infrastructure management, maritime and logistics tracking.
KEY FEATURES:
- NTN satellite communication module
- Ultra-low power consumption
- Super-high sensitivity
- Low voltage power supply: 2.2–3.6 V
- LCC + LGA package, easy for large-volume manufacturing
- Abundant embedded Internet service protocols
- Quectel Wireless Solutions product -
