Product specifications
Attend 104C-TAA0-R

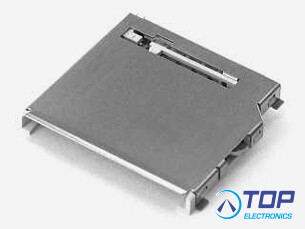

SD Socket Push-Pull Type 15u"
MATERIAL
- Insulator: LPC UL94V-0
- Contacts: Copper Alloy
- Shell: Copper Alloy
CONTACT PLATING
- Underplated: 50u" Nickel
- Contact Area: 15u" Gold Plating
- Solder Tails Area: 100u" Tin/Lead Free
ELECTRICAL
- Current Rating: 1 Amps Max.
- Contact Resistance: 100 mohms Max.
- Insulation Resistance: 1000 Mohms Min @ 500 VDC
MECHANICAL
- Mating Cycles: 10000 Cycles
- Operating Temperature: -25°C to +85°C
- Attend Technology product -
