Product specifications
Attend 104D-RCA0-RA1,

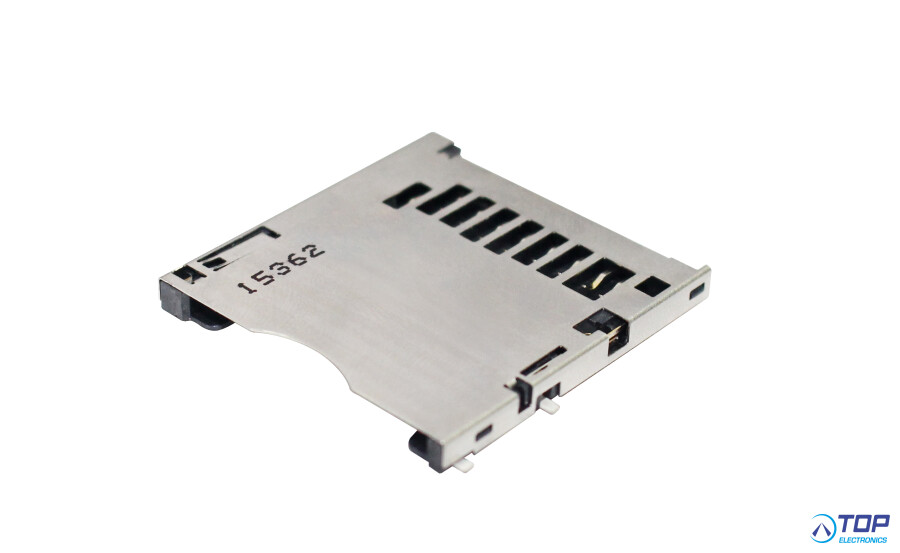

SD Socket Reverse Push-Push Type w/switch, 5u"
ELECTRICAL
- Current Rating: 0.5A MAX.
- Voltage Rating: 100V AC
- Contact Resistance: 100mΩ
- Insulation Resistance: 1000MΩ
- Withstanding Voltage: 500V AC
MECHANICAL
- Contact Retention Force: 0.25kgf Min.
- Insertion Force: 4.2kgf Max.
- Withdrawal Force: 0.21kgf Min.
- Durability: 5,000 Cycles
ENVIRONMENTAL
Operating temperature range: -20℃~+85℃
