Product specifications
PS03-S160MP-V4W
PS03 Series - 19 mm, 1.5 mA or 10 V Excitation, 4 Wires, Analog Output, Pressure Sensor

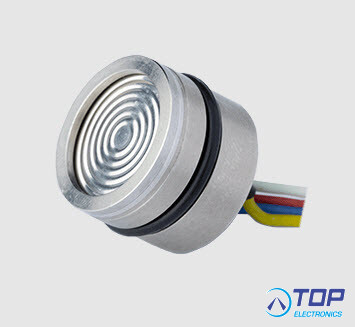

The PS03 series is a family of piezo-based pressure sensors offering absolute or sealed gauge pressure types and an operating pressure range from 0 kPa to 100 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature analog outputs, 10 V or 1.5 mA excitation ratings, and 4-wire terminations. With accuracy of ±0.2% and an operating temperature range from -40 to 125°C, the PS03 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.
Specifications:
Sensor Type: Pressure
Output Type: Analog
Accuracy: ±0.2%
Maximum Pressure (MPa): 100
Termination: Wire Leads
Operating Temp. (°C): -40 ~ 125

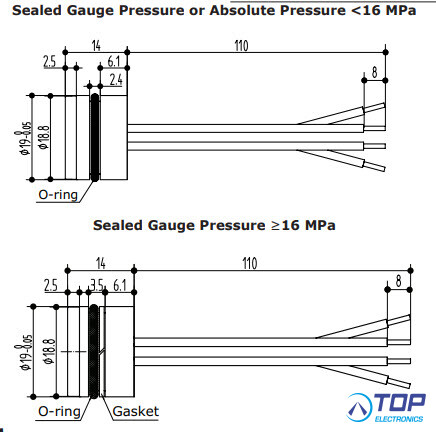

Dimensions LxWxH (mm): 19 x 19 x 14
Dimensions LxWxH (in): 0.75 x 0.75 x 0.55
