Product specifications
PS01-S600MP-3W
PS01 Series - 19 mm, 5 V Excitation, 3 Wires, 0.5V~4.5V Analog Output, Pressure Sensor

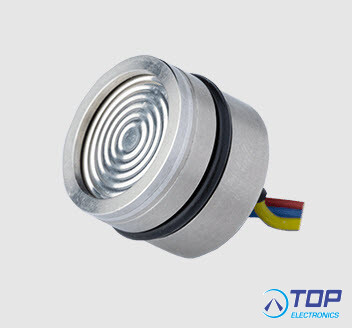

The PS01 series is a family of piezo-based pressure sensors offering absolute, gauge, and sealed gauge pressure types and an operating pressure range from 0 kPa to 2.5 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature analog outputs, 5 V excitation ratings, and 3-wire terminations. With accuracy of ±0.5% and an operating temperature range from -40 to 105°C, the PS01 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.
Specifications
Sensor Type: Pressure
Output Type: Analog
Accuracy: ±0.5%
Maximum Pressure (MPa): 2.5
Termination: Wire Leads
Operating Temp. (°C): -40 ~ 105

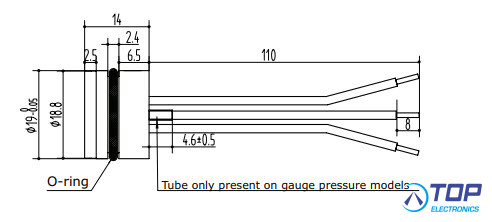

Dimensions LxWxH (mm): 19 x 19 x 14
Dimensions LxWxH (in): 0.75 x 0.75 x 0.55
