Product specifications
Secustos MU20 LEGIC (T4SW)
Multi-frequency access control reader
Secustos is a design-oriented multi-technology reader family. This reader for physical access applications is one of the flattest readers on the market. It supports up-to-date interfaces and protocols, like RS-485 and OSDP, but also Wiegand. The IP65 protected housing
is made of high-class materials that confer the reader a unique look and feel.
Secustos MU20 LEGIC supports a broad range of HF and LF contactless technologies. Many mobile use cases can be facilitated with its NFC and BLE functions, like authentication and data communication.
SPECIAL FEATURES:
- Appealing flat design with premium look and feel, different colors for perfect architectural integration
- Easy installation with in-wall flush-mount boxes or on-wall mounting frame
- Supports LEGIC Connect thanks to integrated LEGIC frontend chip
- Water and dust protected, IP65 potted housing
- Interfaces: RS-485, OSDP protocol or Wiegand
- Dimmable LEDs, available with or without additional function key and backlit keypad
- Proximity sensor, ambient light sensor, tamper switch
- Versatile remote update and configuration features
- Mobile app for device parameter configuration via contactless NFC
ORDER CODES:

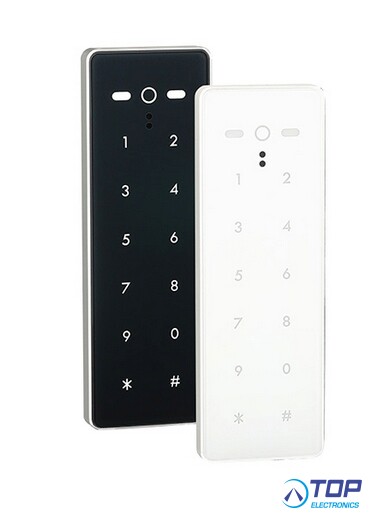

Reader models with keypad:
T4SW-DL10NDSW7-OSEU: Reader with silver frame/white glass front
T4SW-DL10NDGY7-OSEU: Reader with gray frame/gray glass front

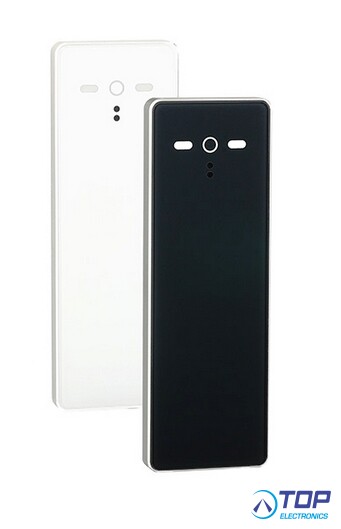

Reader models without keypad:
T4SW-DL00NDSW7-OSEU: Reader with silver frame/white glass front
T4SW-DL00NDGY7-OSEU: Reader with gray frame/gray glass front
-- Elatec product --
