Product specifications
WuT 13601

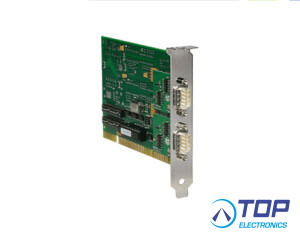

Serial PC Card, ISA, 2x RS422/RS485
Two isolated RS422/RS485 ports for older PCs
The 13601 PC card adds two galvanically isolated RS422/RS485 ports to your older PC and needs no additional driver software.
Interfaces:
-2x RS422/485 selectable
-1x 16-bit ISA bus
-Galvanic isolation between PC and Ports 1 and 2
-Isolation voltage 1kV
Management and connectivity:
-Manual configuration by means of DIL switch
-Flexible configuration
-Standard base addresses COM1-COM4
-custom base addresses possible
-Interrupts IRQ3-IRQ7, IRQ9-IRQ12
-UART 16550 with FIFO
-Software compatible with standard RS232 cards
-No additional driver software required
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Connections and displays:
- System bus: 16-bit ISA bus / 8.33 MHz
- Serial port: 2x RS422/RS485 interfaces, selectable, 9-pin SUB-D adapter
- Operating modes: RS422, RS485 2-/4-wire with handshake, RS485 2-/4-wire with automatic control
- Maximum baud rate: 115.200 kbaud
- Data format: any format
- Signals: RxD, TxD, CTS, DTR
- Handshake: No, RTS/CTS, Xon/Xoff
- UART: 16550 with FIFO
- Base addresses: 03F8H, 02F8H, 03E8H, 02E8H
- Interrupts: IRQ 3..7, IRQ 9..12
- Galvanic isolation: Isolation voltage min. 1kV DC, between PC and serial ports
- Supply voltage: 5V DC, 12V DC
- Current consumption: typ. 200mA @ 5V, typ. 200mA @ 12V
Housing and other data:
- Dimensions: 145 x 120mm (W x H)
- Enclosure rating: IP00
- Weight: approx. 110g
- Ambient temperature: Storage: -40..+70°C, Operating: 0..+70°C
- Permissible relative humidity: 5..95% RH, non-condensing
- Scope of delivery: ISA card 2x RS422/RS485, Product CD with manual, German/English
- Wiesemann & Theis product -
