Product specifications
Attend 115H-BA00

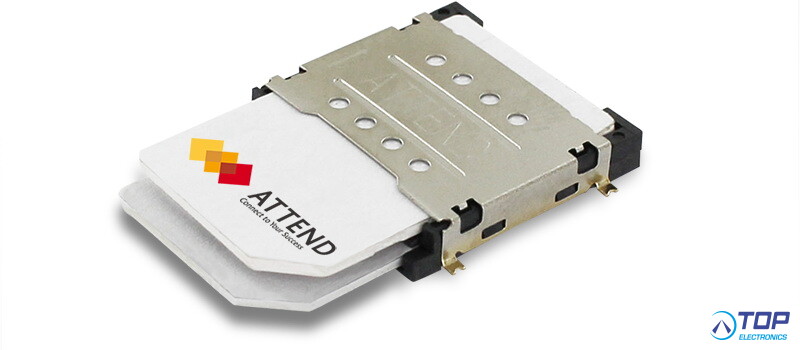

SIM Card Socket Dual Port Push-Pull Type
16 Pin, GF, Stacked (H=3.0mm)
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 100V AC/DC
Contact Rating: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 5000 Cycle
ENVIRONMENTAL
Operating Temperature Range: -40°C~+85°C
Storage Temperature Range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260°C 10sec
