Product specifications
Attend 115F-AAA2

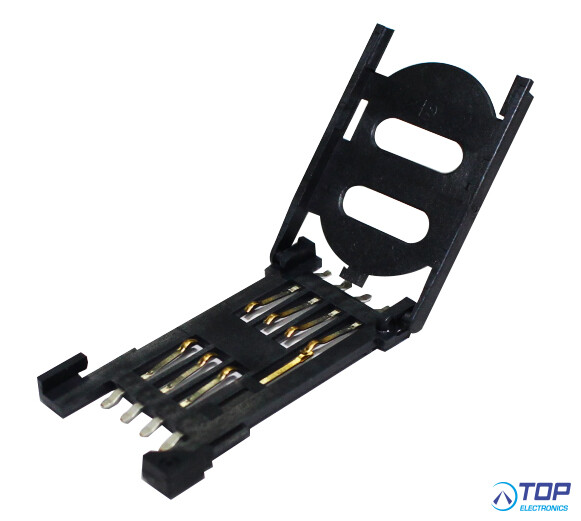

SIM Card Socket, Hinge Type, 6+2 Pin, G/F, Reel, w/ PEG, w/Switch, w/Logo
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 30V AC/DC
Contact Resistance: 100mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 5,000 Cycle
ENVIRONMENTAL
Operating temperature range: -25°C~+85°C
Storage temperature range: -25°C~+85°C
SOLDER ABILITY
Recommended IR Reflow(Wave Soldering) Temperature: 260°C
