Product specifications
115C-BC00-01

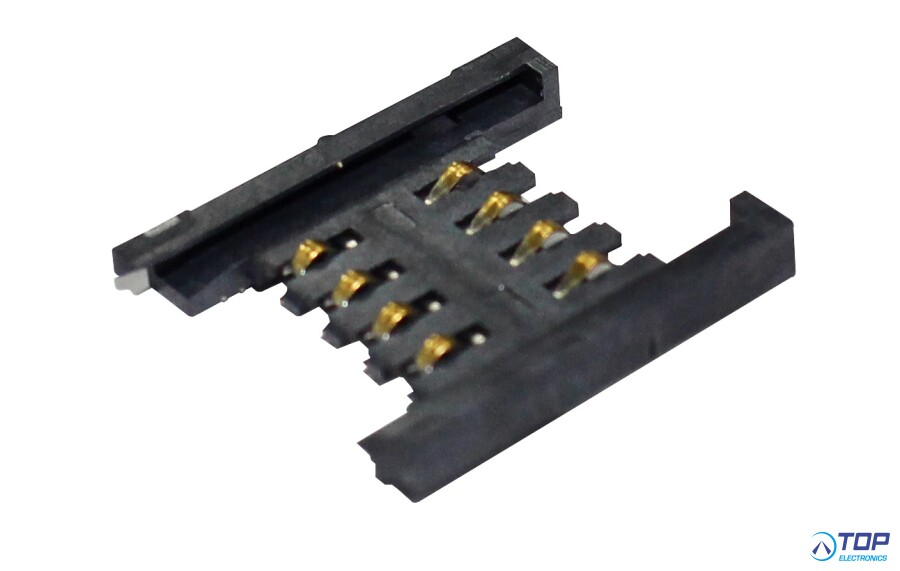

SIM Card Socket, Holder Type, 8Pin, 5u", Reel, H2.6mm
SPECIFICATION:
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 100VAC/DC
Contact Resistance: 50mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500VAC
MECHANICAL
Durability: 5,000 Cycle
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR-Reflow Temperature: 260°C
- Attend Technology product -
