Product specifications
Attend 115G-AAAA-R

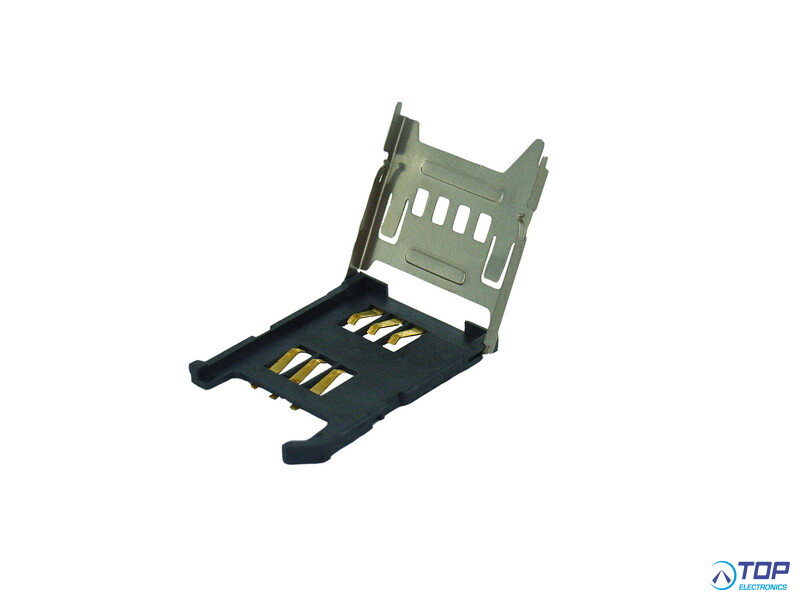

SIM Card Socket Metal Hinge Type , 6Pin with Card Detect
Material
Housing: Hi/ Temp. UL 94V-0, Color: Black
Contact: Copper Alloy (T=0.15mm)
Cover: Stainless Steel (T=0.2mm)
Specification
Current Rating: 1.0 AMP. Max.
Dielectric Withstanding Voltage: 500V AC R.M.S For One Minute.
Insulation Resistance: 1000MΩ Min At 500V DC.
Contact Resistance: 30mΩ Max.
Operating Temperature: -40 °C to +85 °C
