Product specifications
Attend 115B-AAA0-R01

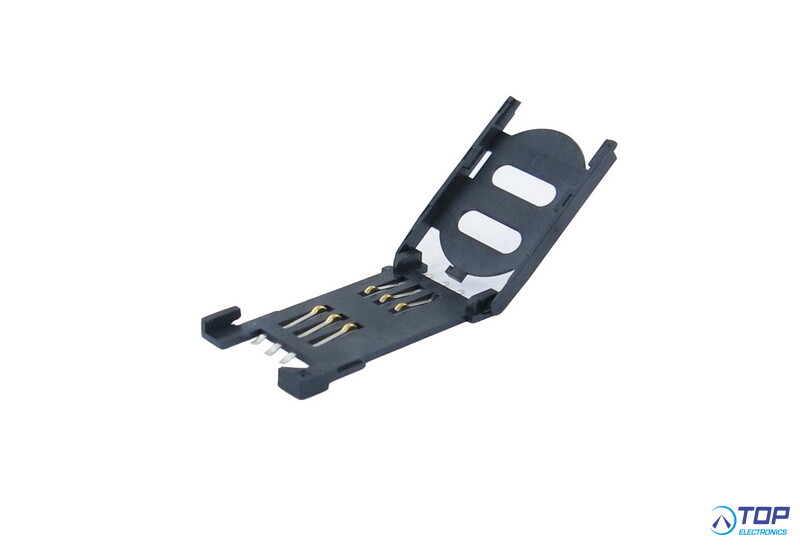

SIM Card Socket Plastic Hinge Type , 6Pin
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 30V AC/DC
Contact Resistance: 30mΩ
Insulation Resistance: 1000MΩ
Dielectric Withstanding Voltage: 500V AC
MECHANICAL
Durability: 5000 Cycle
ENVIRONMENTAL
Operating temperature range: -40°C~+85°C
Storage temperature range: -40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature: 260℃ 10sec
- Attend Technology product -
