Product specifications

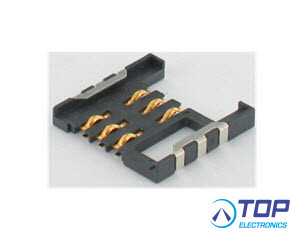

Attend 115C-AC00-R
SIM Card Socket with Card Holder, 6 pin
MATERIAL
HOUSING: HI.-TEMP. PLASTIC(UL 94V-0). BLACK
TERMINAL: COPPER ALLOY (t=0.15mm) GOLD PLATED OVER NICKEL
FORK: COPPER ALLOY (t=0.20mm) TIN PLATED OVER NICKEL
ELECTRICAL
CURRENT RATING: 1.0 A MAX.
DIELECTRIC WITHSTANDING VOLTAGE: 500V AC R.M.S. FOR ONE MINUTE
INSULATION RESISTANCE: 1000MΩ MIN. AT 500V DC.
CONTACT RESISTANCE: 30mΩ MAX.
OPERATING TEMPERATURE: -40°C TO +85°C
- Attend Technology product -
