Product specifications
ERF6023

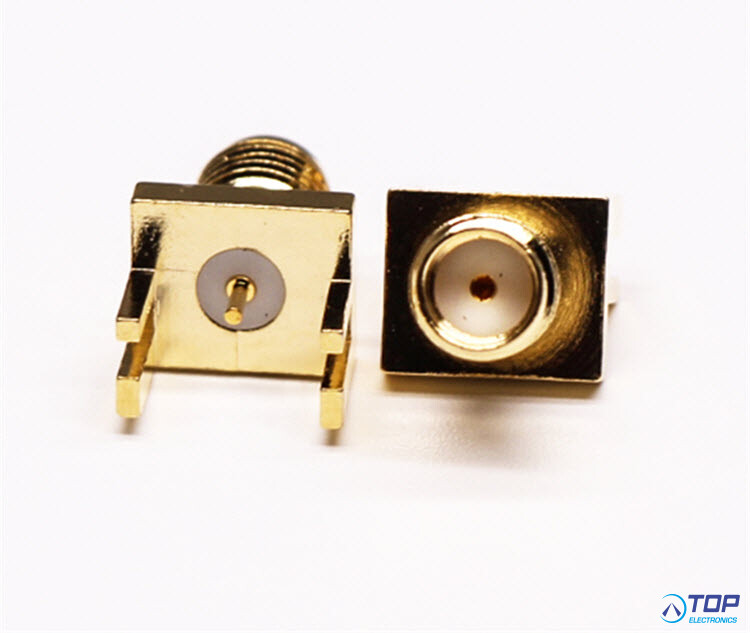

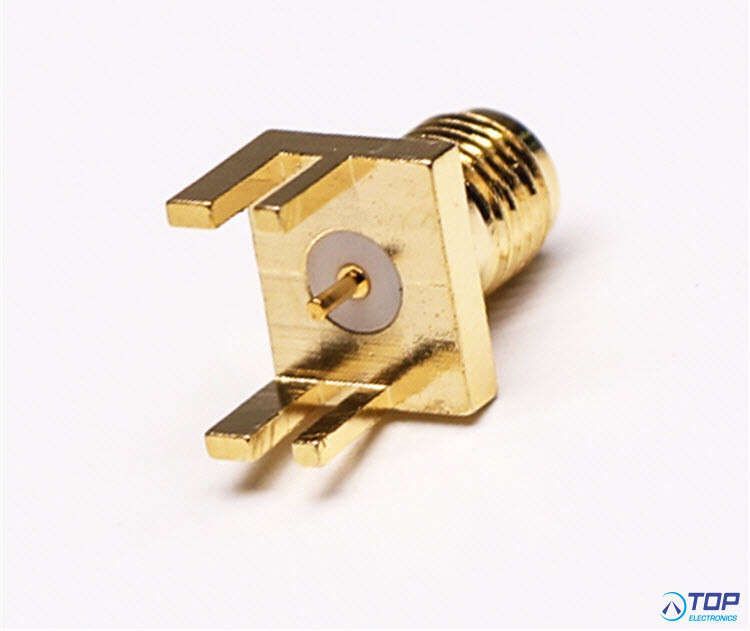

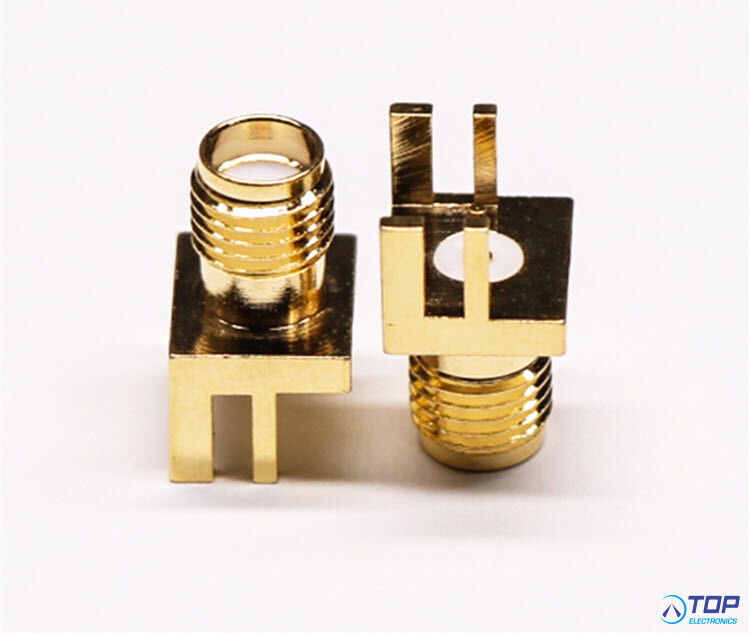

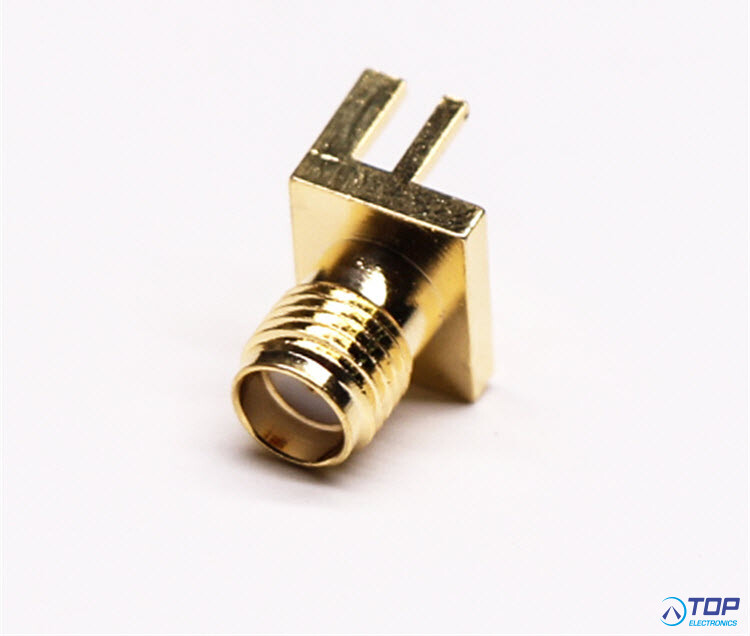

The ERF6023 is a RF connector suitable for RF applications. The connector is a SMA Female PCB end launch connector. It can be used for RF connections and as antenna connector.
Mechanical Properties
Connector Type: SMA Female PCB End Launch
Dimensions: 14.28 x 9.52 x 7.92 mm ± 0.1
Operating Temperature Range: -65°C~+165°C
Storage Temperature Range: -65°C~+165°C
Electrical Properties
Impedance: 50 O
Frequency Range: 0 – 6GHz
VSWR: 1.5 max.
Working Voltage: 500Vrms @sea level
Insulation Resistance: 5000 O min.
