Product specifications
ERF6018
The ERF6018 is a RF connector suitable for RF applications.

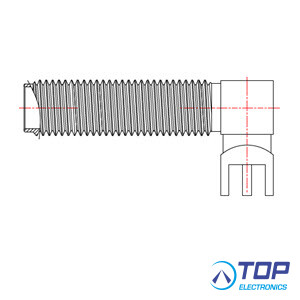

The connector is a SMA Female Right angle PCB mount connector.
It can be used for RF connections and as antenna connector.
Parameter: Description
Connector Type: SMA Female Right Angle
Dimensions: 29 x 13 x 6 mm ± 0.1
Operating Temperature Range: -20°C~+65°C
Storage Temperature Range: -20°C~+65°C
Impedance: 50 O
Frequency Range: 0 – 3GHz
VSWR: 1.3 max.
Working Voltage: 500Vrms @sea level
Insulation Resistance: 5000 O min.
