Product specifications

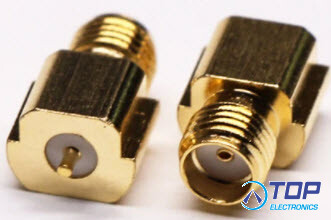

ERF6022
SMD Edge card for PCB 1.6mm Max.
The ERF6022 is a RF connector suitable for RF applications. The connector is a SMA Female SMT mount connector. It
can be used for RF connections and as antenna connector.
Mechanical Properties
Connector Type: SMA Female SMT
Dimensions: 13 x 7 x 7 mm ± 0.1
Operating Temperature Range: -55°C~+155°C
Storage Temperature Range: -55°C~+155°C
Electrical Properties
Impedance: 50 O
Frequency Range: 0 – 6GHz
VSWR: 1.3 max.
Working Voltage: 500Vrms @sea level
Insulation Resistance: 5000 O min.
