Product specifications
ERF6007

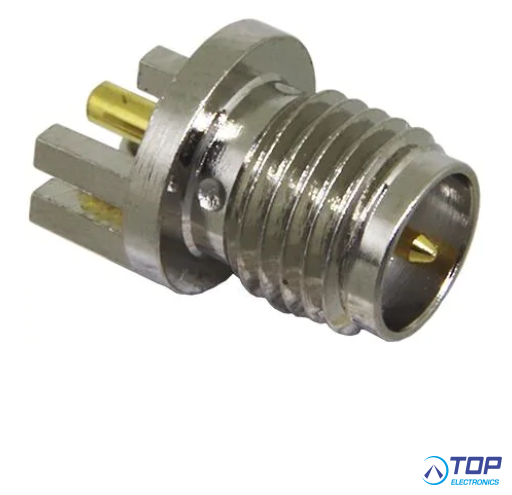

SMA RP Connector, Jack, Board Edge, 50Ohm, PCB thickness 0.80mm
Connector Style RP-SMA, RSMA, R-SMA
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Type Board Edge, End Launch
Cable Group -
Fastening Type Threaded
Frequency - Max -
Features -
Housing Color Silver
Ingress Protection -
Body Material Brass
Body Finish Nickel
Center Contact Material Brass
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Voltage Rating -
Operating Temperature -65°C ~ 165°C
