Product specifications
1124A-40A10

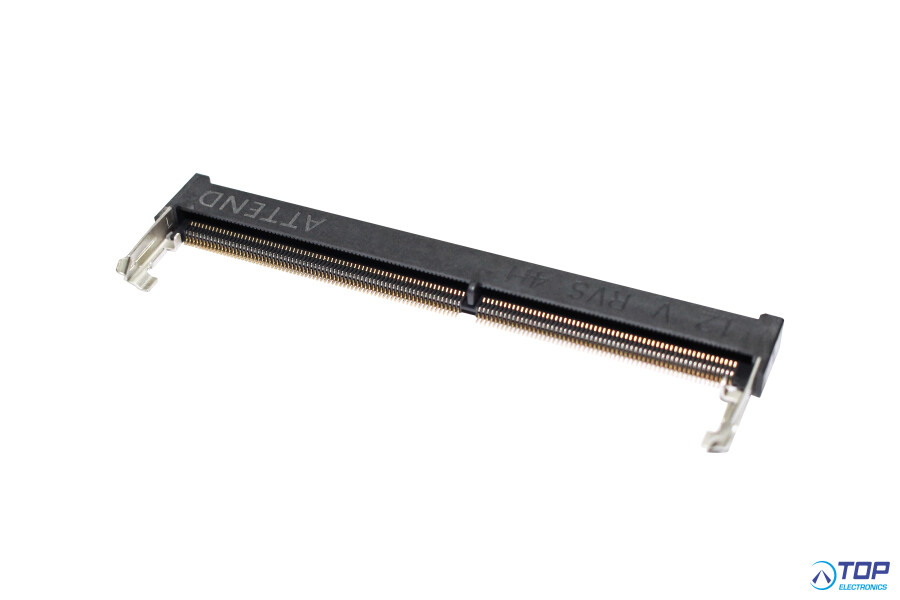

DDR4 SODIMM Socket, Horizontal 4.0H, RVS, G/F, Black, Reel, Solder Latch, Brass
ELECTRICAL
Current Rating: 0.5A per pin
Voltage Rating: 25V AC/DC
Contact Resistance: 55mΩ
Insulation Resistance: 500MΩ
Dielectric Withstanding Voltage: 300VAC
MECHANICAL
Durability: 25 Cycle
Latch Retention Force: 8N/Pos. Min
ENVIRONMENTAL
Operating temperature range: -55℃~+85℃
Storage temperature range: -55℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature: 260℃ 10Sec
