Product specifications

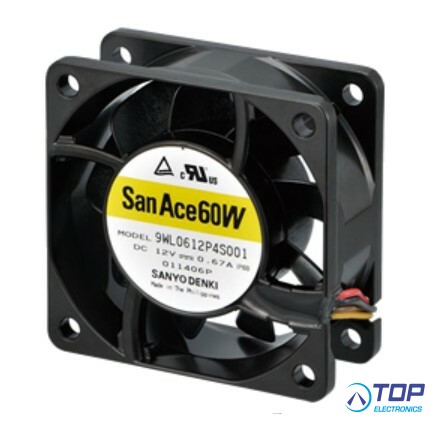

9WL0612P4H001
Splash Proof Fan 60x60x25mm
Frame material: Aluminum
Rated voltage [V]: 12
Operating voltage range [V]: 10.8～13.2
Rated current [A]: 0.17
Rated speed [min-1]: 6150
Max. airflow [m3/min]: 0.78
Max. static pressure [Pa]: 27.5
SPL [dB(A)]: 36
Operating temperature[˚C]: -20～+70
Expected life[h]: 180000/60℃ （215000/40℃）
Mass [g]: 120
Sensor type: Pulse sensor
IP rating: IP68
PWM control function: Yes
Ribbed: No
- Sanyo Denki Product -
