Product specifications
R.T.A. - X-PLUS S4

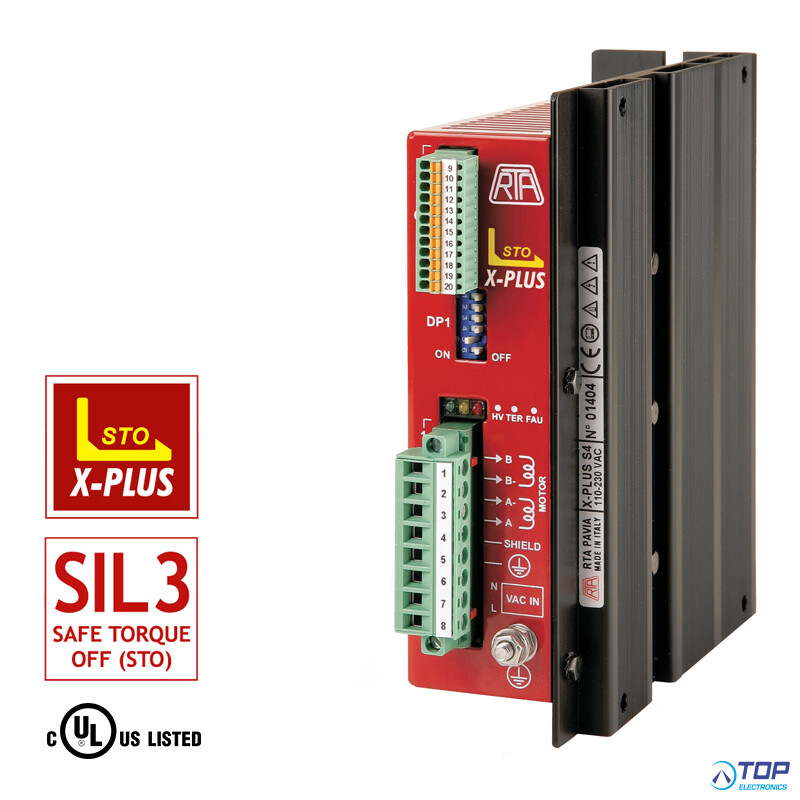

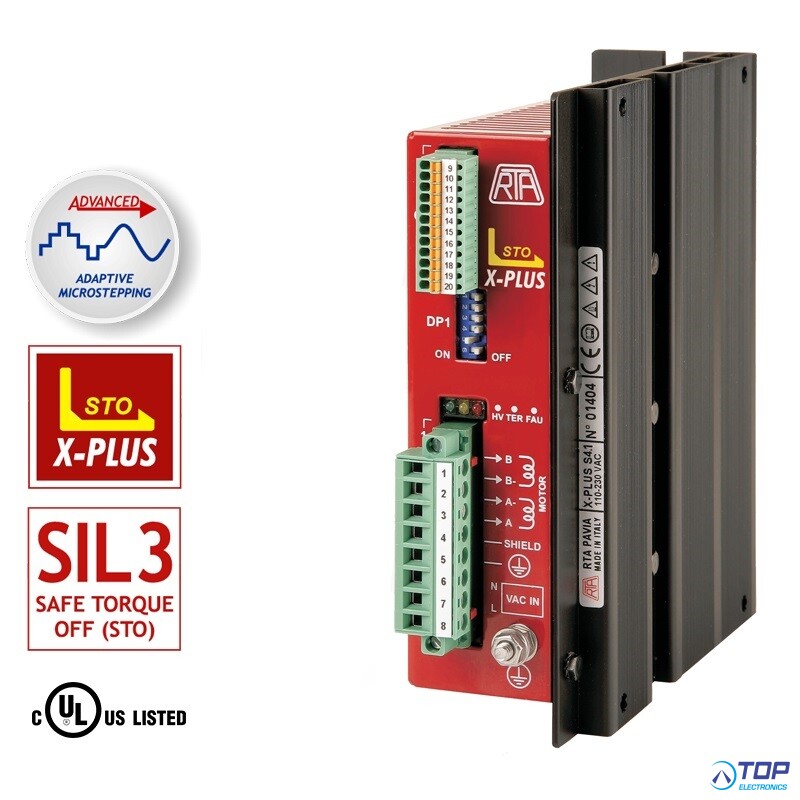

Stepping motor drive boxed X-PLUS S4 with STO (SIL3) Function
- Stepping motor drives series with Step & Direction interface and direct input from the main AC power supply (from 110 VAC to 230 VAC) and STO function.
- The drive is equipped with an internal rectifier able to transfer more than 330 VDC (230 VAC) to the motor, in order to ensure the maximum power for the application as well as a significant cost saving on transformer and rectifier, together with the related cabling.
- Target: advanced application requiring great dynamic performance, high reliability and simplified power supply.
- UL, CSA marking.
HIGHLIGHTS
- STO [SIL3] function.
- Error Detection Monitor.
- Electronic damping facility for further acoustic noise and mechanic vibrations reduction at low and medium speed.
- Optoinsulated and differential input and output signals ease interfacing with the most commonly used control systems and ensure high noise immunity.
- Coupling with stepping motors rated for high voltage and equivalent or bigger than NEMA 34 is mandatory.
TECHNICAL SPECIFICATIONS

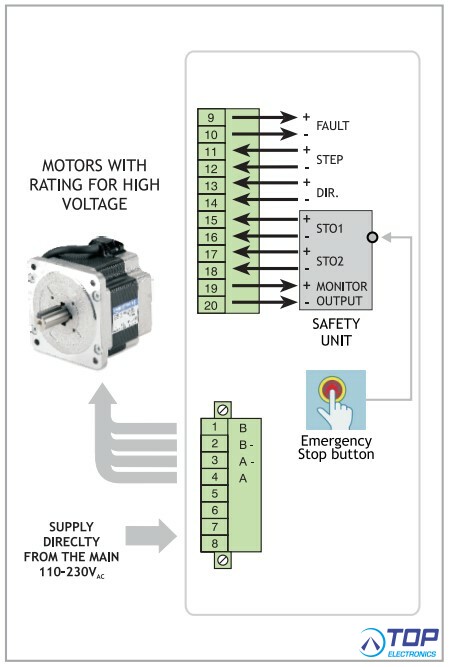

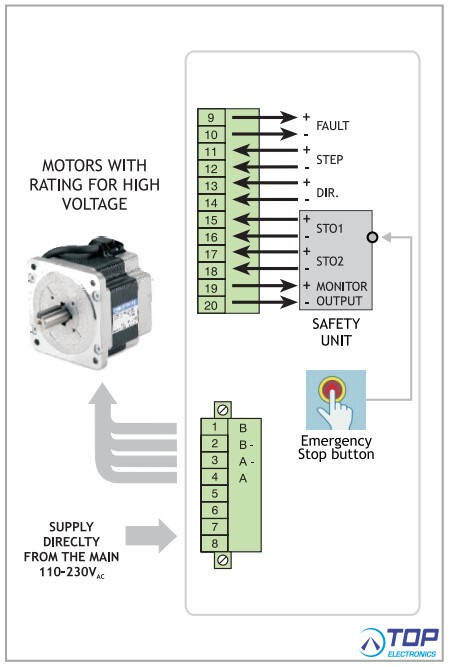

- Possibility to switch off motor current by means of STO function.
- Range of operating voltages: 110-230 VAC.
- Range of current: 2.4-4.0 Amp. Setting up to four possible values by means of dip-switches.
- Microstepping: 400, 800, 1.600, 3.200 and 500, 1.000, 2.000, 4.000 steps /revolution. Setting by means of dip-switches.
- Automatic current reduction at motor standstill.
- Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection.
- Optoinsulated inputs compatible with differential
- control signals.
- High efficiency CHOPPER with IGBT final stage output.
- Electronic resonance damping circuit to ensure acoustic noise and mechanic vibrations reduction at low and medium speed.
- Alarm memory by use of yellow blinking led.
- Coupling with stepping motors rated for high voltage and equivalent or bigger than NEMA 34 is mandatory.
- Version: boxed, equipped with crimp-type connectors. Maximum compactness.
- UL, CSA certified.
- Warranty: 24 months.
- R.T.A. product -
