Product specifications

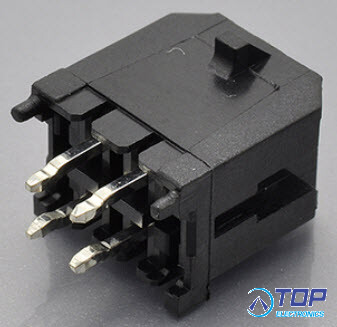

SWTB-C3000VD-04
Bag: 1K pcs
?SPECIFICATIONS:
?Current rating: 5A AC, DC.
?Voltage rating: 250V AC,DC.
?Temperature range: -25°C ~ +85°C.
?Insulation resistance: 1000M O Min.
?Withstanding voltage: 1500V AC/ minute.
?Contact resistance: 10mO Max.
Material:
Insulator: PA46 UL 94V-0
Contact: Brass
Plating: Tin plated
Circuits: 2~24
