Product specifications

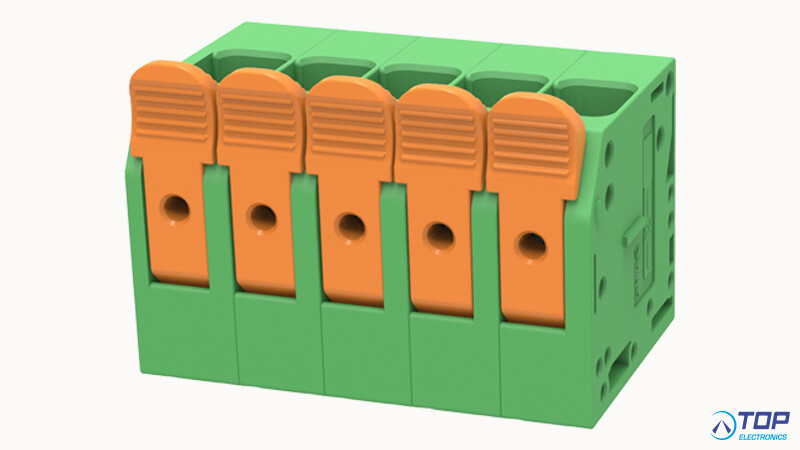

DG2206V-7.5-DB-05P
DG2206V-7.5-DB-05P-14-00Z(H)
Processing notes:
Process Wave soldering/manual soldering
Connection capacity
Conductor cross section solid 0.2~10mm²
Conductor cross section flexible 0.2~6.0mm²
AWG 24~8AWG
Strip length 12mm
Electrical parameters UL
Rated voltage (B) 600V
Rated voltage (C) 600V
Rated voltage (D) 600V
Rated current (B) 41A
Rated current (D) 5A
Rated current (C) 41A
Electrical parameters IEC
Rated voltage 1000V
Rated voltage(III/3) 800V
Rated current 41A
Rated voltage(III/2) 1000V
Rated voltage(II/2) 1000V
Rated surge voltage(III/3) 8KV
Rated surge voltage(III/2) 8KV
Rated surge voltage(II/2) 8KV
Item properties
Connection direction 90°
Type of installation PCB welding
Pin arrangement Double-row of misalignment
Connection method Push-in spring connection
Pitch 7.5mm
Number of potentials 5
Pluggable or not no
Number of rows 1
Material data
Environmental items Compliant with REACH/RoHS
Contact material copper
Contact point metal surface tin-plated
Insulation Materials PA66
Insulating material group Ⅰ
Flammability rating UL94V-0
Mechanical tests
Test Specification IEC60947/UL1059
Environmental data
Ambient temperature (operation) -40℃~105℃(depending on derating curve)
