Product specifications

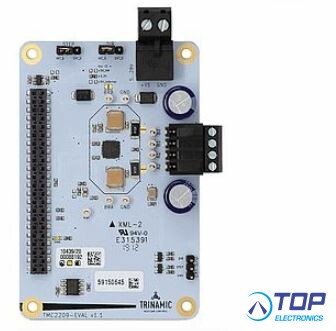

TRINAMIC TMC2209-EVAL
The TMC2209-EVAL allows you to explore all functions of the TMC2209-LA.
The TMC2209-EVAL-KIT is a set of one MCU board Landungsbrücke, one Eselsbrücke bridge board and one TMC2209-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC2209 are accessible with probes on the bridge board. TMC2209-EVAL can be used with or without the Landungsbrücke MCU board. Comprehensive sample code can be found in Trinamics Technology Access Package TTAP.
