Product specifications

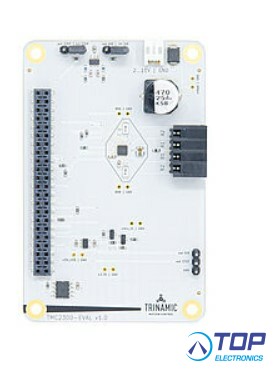

TRINAMIC TMC2300-EVAL
he TMC2300-EVAL allows you to explore all functions of the TMC2300-LA.
The TMC2300-EVAL-KIT is a set of one MCU board Landungsbrücke, an Eselsbrücke bridge board and one TMC2300-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC2300 are accessible with probes on the bridge board. TMC2300-EVAL can be used with or without the Landungsbrücke MCU board. Compehensive sample code can be found in Trinamics Technology Access Package TTAP.
A dedicated Firmware for the use of the TMC2300-EVAL-KIT is provided for download from the Trinamic website.
- TRINAMIC Motion Control product -
