Product specifications
TRINAMIC TMC7300-EVAL

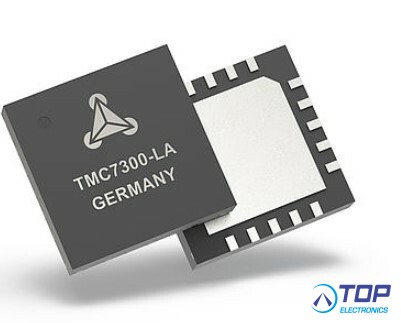

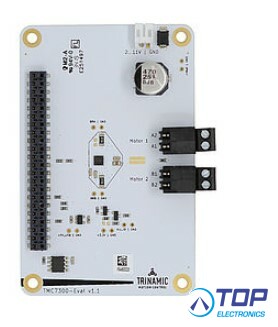

The TMC7300-EVAL allows you to explore all functions of the TMC7300-LA.
The TMC7300-EVAL-KIT is a set of one MCU board Landungsbrücke, a Eselsbrücke bridge board and one TMC7300-EVAL driver board.
It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC7300 are accessible with probes on the bridge board. TMC7300-EVAL can be used with or without the Landungsbrücke MCU board. Comprehensive sample code can be found in Trinamics Technology Access Package TTAP.
A dedicated Firmware for the use of TMC7300-EVAL-KIT is provided on the Trinamic website.
