Product specifications

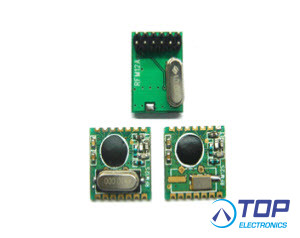

HopeRF - RFM12B-868-S2
Transceiver Module, +5dBm 868MHz, SMD thin package
Hope's RF12B is a single chip, low power, multi-channel FSK transceiver designed for use in applications requiring FCC or ETSI conformance for unlicensed use in the 433, 868 and 915 MHz bands. The RF12B transceiver produces a flexible, low cost, and highly integrated solution that does not require production alignments. The chip is a complete analog RF and baseband transceiver including a multi-band PLL synthesizer with PA, LNA, I/Q down converter mixers, baseband filters and amplifiers, and an I/Q demodulator. All required RF functions are integrated. Only an external crystal and bypass filtering are needed for operation. The RF12B features a completely integrated PLL for easy RF design, and its rapid settling time allows for fast frequency-hopping, bypassing multi-path fading and interference to achieve robust wireless links. The PLL??s high resolution allows the usage of multiple channels in any of the bands. The receiver baseband bandwidth (BW) is programmable to accommodate various deviation, data rate and crystal tolerance requirements. The transceiver employs the Zero-IF approach with I/Q demodulation. Consequently, no external components (except crystal and decoupling) are needed in most applications. The RF12B dramatically reduces the load on the microcontroller with the integrated digital data processing features: data filtering, clock recovery, data pattern recognition, integrated FIFO and TX data register. The automatic frequency control (AFC) feature allows the use of a low accuracy (low cost) crystal. To minimize the system cost, the RF12B can provide a clock signal for the microcontroller, avoiding the need for two crystals. For low power applications, the RF12B supports low duty cycle operation based on the internal wake-up timer.
Features
Fully integrated (low BOM, easy design-in)
No alignment required in production
Fast-settling, programmable, high-resolution PLL synthesizer
Fast frequency-hopping capability
High bit rate (up to 115.2 kbps in digital mode)
Direct differential antenna input/output
Integrated power amplifier
Programmable TX frequency deviation (15 to 240 kHz)
Programmable RX baseband bandwidth (67 to 400 kHz)
Analog and digital RSSI outputs
Automatic frequency control (AFC)
Data quality detection (DQD)
Internal data filtering and clock recovery
RX synchron pattern recognition
SPI compatible serial control interface
Clock and reset signals for microcontroller
16 bit RX Data FIFO
Two 8 bit TX data registers
Low power duty cycle mode
Standard 10 MHz crystal reference
Wake-up timer
2.2 to 3.8 V supply voltage
Low power consumption
Low standby current (0.3µA)
Supports very short packets (down to 3 bytes)
Excellent temperature stability of the RF parameters
- HopeRF Microelectronics product -
