Product specifications
USB memory with network connection

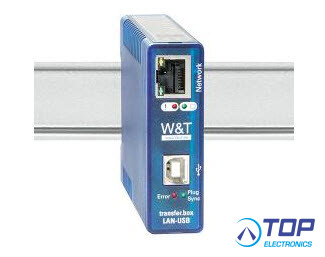

The transfer.box is a USB memory with network interface. Whereas locally connected USB sticks or USB drives are a "dead-end street" in terms of data technology, the transfer.box enables two-ended access in that the data memory can be read and written both over the network and via USB.

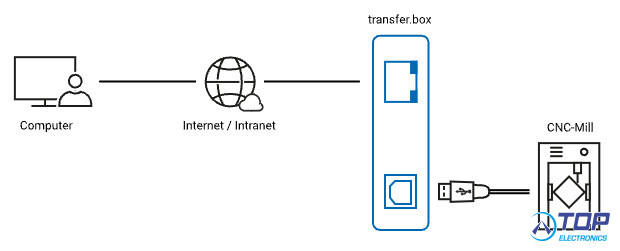

If the transfer.box is connected to a host system via USB, for example to a CNC milling machine, the machine can use it as a USB mass storage device. On the network side Samba, FTP and SSH can be used to access the same memory area of the box.
Interfaces:
- 1 x network
- 1 x USB
Management and connectivity:
- Configuration
- Startup using WuTility (three clicks and you’re done)
- Web-based management
-Application
- USB memory with network connection
- Network access via Samba (SMB), FTP and SSH
Power supply:
- External power
- Screw terminal
- Power over Ethernet (PoE)
- Phantom power using data pairs
- Power over unused wire pairs
Standards & more
- Conforms to standards both in office and industrial environments:
- High noise resistance for industrial environments
- Low noise emission for residential and business areas
-- Wiesemann & Theis product --
