Product specifications

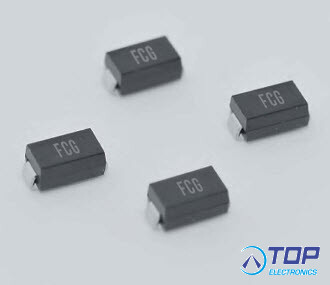

SMAJ12CA
** MOQ is 5000pcs a reel.
1. Features
● For surface mounted applications in order to
optimize board space
● Halogen-Free
● RoHS compliant
● Typical maximum temperature coefficient
△VBR=0.1%xVBR@25℃x△T
● Low profile package
● Built-in strain relief
● Glass passivated junction
● Low inductance
● Excellent clamping capability
● Repetition Rate (duty cycle):0.01%
● Fast response time: typically less than 1.0ps from
0 Volts to V(BR)
● Typical IR less than 1uA above 12V
● High Temperature solderting: 260°C/40 seconds
at terminals
● Plastic package has Underwriters Laboratory
Flammability 94V-0
● Matte Tin Lead-free plated
2. Mechanical Data
Case: JEDEC DO214AC. Molded plastic over glass passivated junction
Terminal: Solderable per MIL-STD-750, Method 2026
Polarity: Color band denoted positive end (cathode) except Bidirectional
Standard Packaging: 12mm tape (EIA STD RS-481)
Weight: 0.002 ounce, 0.061 gram
- Fuzetec Technology product -
