Product specifications
ERF6002

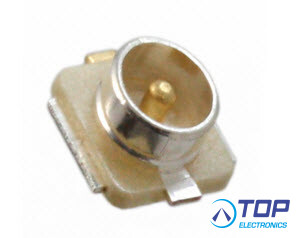

u.FL-R-SMT-1 connector
Also available in full T&R package, see ERF6002-T.
Connector Style: U.FL
Connector Type: Jack, Male Pin
Contact Termination: Solder
Shield Termination: Solder
Impedance: 50 Ohm
Mounting Type: Surface Mount
Cable Group: -
Fastening Type: Snap-On
Frequency - Max: 6GHz
Features: -
Housing Color: Silver
Ingress Protection: -
Body Material: Phosphor Bronze
Body Finish: Silver
Center Contact Material: Phosphor Bronze
Center Contact Plating: Gold
Dielectric Material: Liquid Crystal Polymer (LCP)
Voltage Rating: -
Operating Temperature: -40°C ~ 90°C
