Attend 209B-DG01

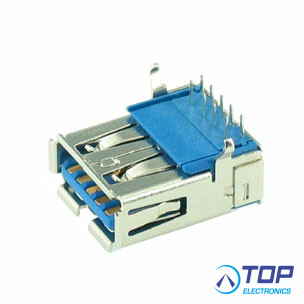

USB 3.0 A Receptacle, DIP Standard Type, 30u" Gold Plating
MATERIAL AND FINISH
Insulator Material: Nylon-9T, UL94V-O, Color: Blue
Contact A Material: Brass
Contact B Material: Phosphor Bronze
Contact Plated:
Contact Area Plated: 30u" Gold Plated
Solder Tails Area Plated: 100u" Tin Plated
Underplate: 80u" Nickel Plated
Shell Material: Brass
Shell Plated: 80u" Nickel Plated
Rear Shell Material: SPCC
Rear Shell Plated: Nickel Plated
Electrical Requirement:
Contact Resistance: 30m Ohms Max. Initial for VBUS and GND Contact
Contact Resistance: 50m Ohms Max. Initial for All Other Contacts
Dielectric Strength: 750Volts AC(RMS)
Insulation Resistance: 100M Ohms Min.
Contact Current Rating: 1.8 A (Max). (PIN1,PIN4) all other contacts 0.25A Min.
Mechanical Requirement:
Insertion Force: 35N Max.
Extraction Force: 10N Min. Initial 8N
