Product specifications
EIO1002

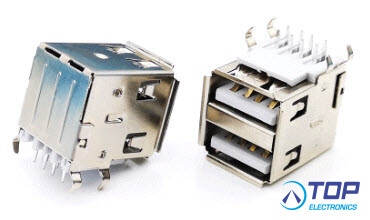

USB A Type horizontal Dual Port
Contact Resistance: 30 M ohms Max.
Insulation Resistance: 1000 M ohms Min. At 100VDC
Rated Voltage and Current: 1.5 A.
Durability (Life Test): 1500 cycles
Insertion Force: 35Newtone Max.
Extraction Force: 10N.
