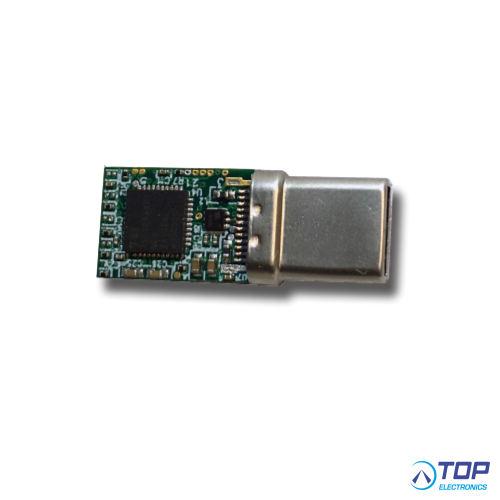

The USB-C100 & USB-C101 USB “Type-C” Turn-key Modules – Complete Digital Audio Solutions Embedded inside a USB-C Connector
While nearly identical to the TDTSI010 USB-C (USB “Type-C”) dongle from a functional standpoint (sans GPIO-based buttons, integrated microphone, board size and cables), the USB-C100 / USB-C101 is Tempo’s USB-C Headphone / Headset / Female 3.5mm Adapter embedded connector complete turn-key module offering. This highly cost-effective solution is targeted at Android™ / Windows® / macOS® X / Linux® OS-powered mobile / desktop / laptop / tablet devices.
Unlike the legacy TDTSI0101 (predecessor to the USB-C100 / USB-C101 module) and the TDTSI016 turn-key reference designs which connects the USB to I2S Bridge IC via discrete GPIO signals to discrete push-buttons (removing the need for an additional PCB), the USB-C100 / USB-C101 turn-key modules enable ANY OEM or ODM to simply convert their current Android 3.5 mm Headset Specification-compliant product that employs a single push button (Function A) or 3 push buttons (Functions A, B & C) which are designed using the simple resistor-ladder network per the Android 3.5mm: Headset Accessory Specification.
The RoHS compliant USB-C100 / USB-C101 modules are the simplest and fastest time to market solution for OEMs or ODMs desiring to make a Headset product that is 100% Compliant to the Android USB Headset: Accessory Specification
