Product specifications
MegiQ VNA Starter Kit 0460e
The VNA-0460e is full bi-directional 2½-port Vector Network Analyzer that is controlled from a PC through a USB connector.
This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.
With its small size it can also be used near the antenna inside a large device or installation. It's also ideal for on-site measurements.
The extra Generator port provides an additional signal port that can be used for measuring 3-port devices.
A built-in Bias Generator provides a voltage/current source from -12V to +12V and 100mA. Each of the three ports can be routed to either the bias voltage, ground, or open.

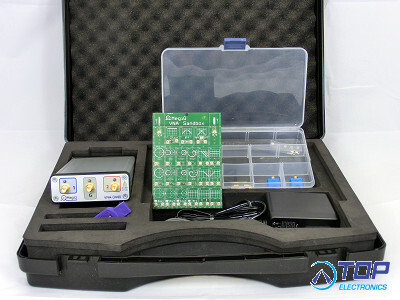

Pack content:

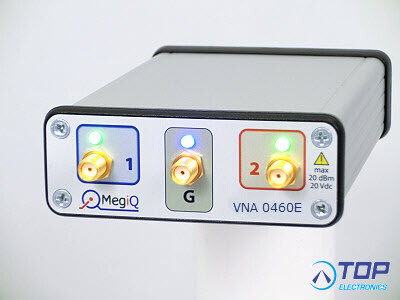

1 x VNA-0460e
VNA-0460e, Full Featured, 400-6000MHz Vector Network Analyser, 2 / 3 port

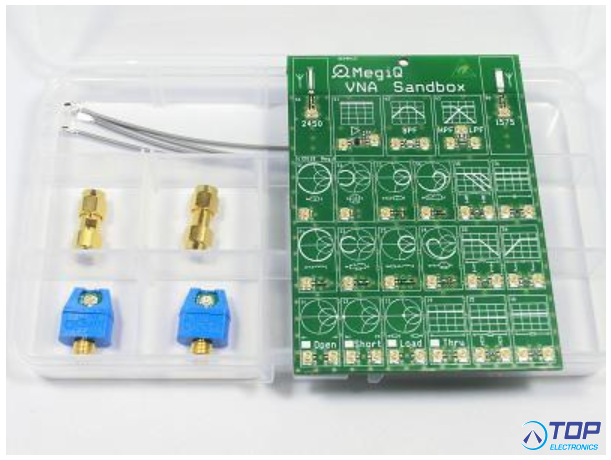

1 x VNA Sandbox
Tutorial kit with thoroughly explained real life measurements.
-- MegiQ product --
