Product specifications

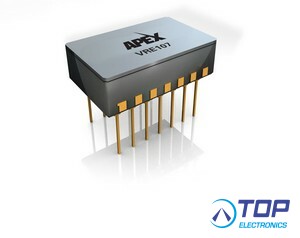

VRE107MA - Precision Voltage Reference, 5V, ±0.6mV, -55°C to +125°C
VRE107 Series Precision Voltage References provide ultrastable ±5 V outputs with ±0.4 mV initial accuracy and temperature coefficient as low as 0.6 ppm/°C over the full military temperature range. This impovement in accuracy is made possible by a unique, proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE107 series the most accurate and stable 5 V references available.
VRE107 series devices are available in two operating temperature ranges, -25°C to +85°C and -55°C to +125°C, and two performance grades. All devices are packaged in 14-pin hermetic ceramic packages for maximum long-term stablity. “M” versions are screened for high reliability and quality. Superior stability, accuracy, and quality make these references ideal for precision applications such as A/D and D/A converters, high accuracy test and measurement instrumentation, and tranducer excitation.
FEATURES
• Very High Accuracy: ±5 V, ±0.6mV
• Extremely Low Drift: 0.6 ppm/°C (-55°C to +125°C)
• Excellent Stability: 6 ppm/1000 Hrs. Typical
• Excellent Line Regulation: 6 ppm/V Typical
• Wide Supply Range: ±13.5 V to ±22 V
• Hermetic 14-pin Ceramic DIP
• Military Processing Option
APPLICATIONS
• Precision A/D and D/A Converters
• Transducer Excitation
• Accurate Comparator Threshold Reference
• High Resolution Servo Systems
• Digital Voltmeters
• High Precision Test and Measurement Instruments
- APEX Microtechnology product -
