Product specifications
207G-BD00

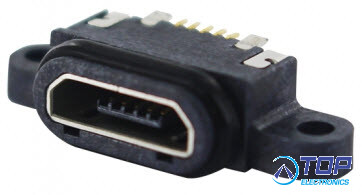

Micro USB 2.0, B Type Receptacle, Right Angle, SMT, 10u"
USB connector, a universal connector is widely applied to various industries and products because it featured the hot-swapping and Plug-n-Play which change the user behavior of all pluggable devices. Since the very first launched in 1998, USB has been developed into a huge family, from the standard to high-speed data transmission, power supplier and other additional types. ATTEND offers a full range USB selections for designing which focus on stability, durability, and affordability.
ELECTRICAL:
Current Rating: Signal(Pin1,2,3,4,5) 1.0A
Current Rating: Power(Pin1,5) 1.8A
Current Rating: Other 0.5A
Voltage Rating 250V max
Contact Resistance 40mΩ max
Insulation Resistance 1000MΩ
Dielectric Withstanding Voltage 100VAC
MECHANICAL:
Durability 10,000 Cycle
Insertion Force 35N max.
Extraction Force 8~20N max.
ENVIRONMENTAL:
Operating temperature range -25°C~+85°C
Storage temperature range -20°C~+85°C
Wasterproof Level IPX7
SOLDER ABILITY:
Recommended IR Reflow Temperature 260°C +0/-5°C
